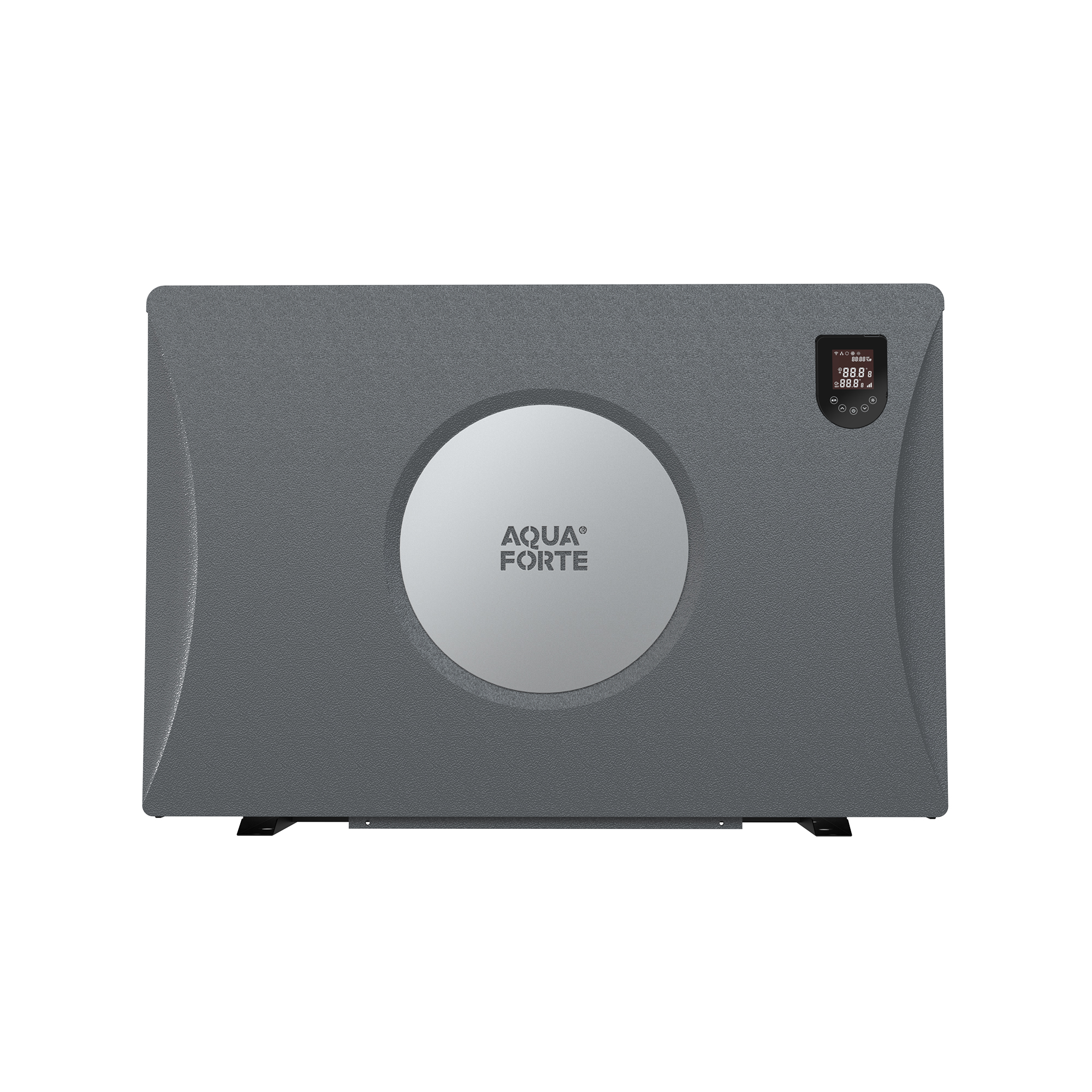

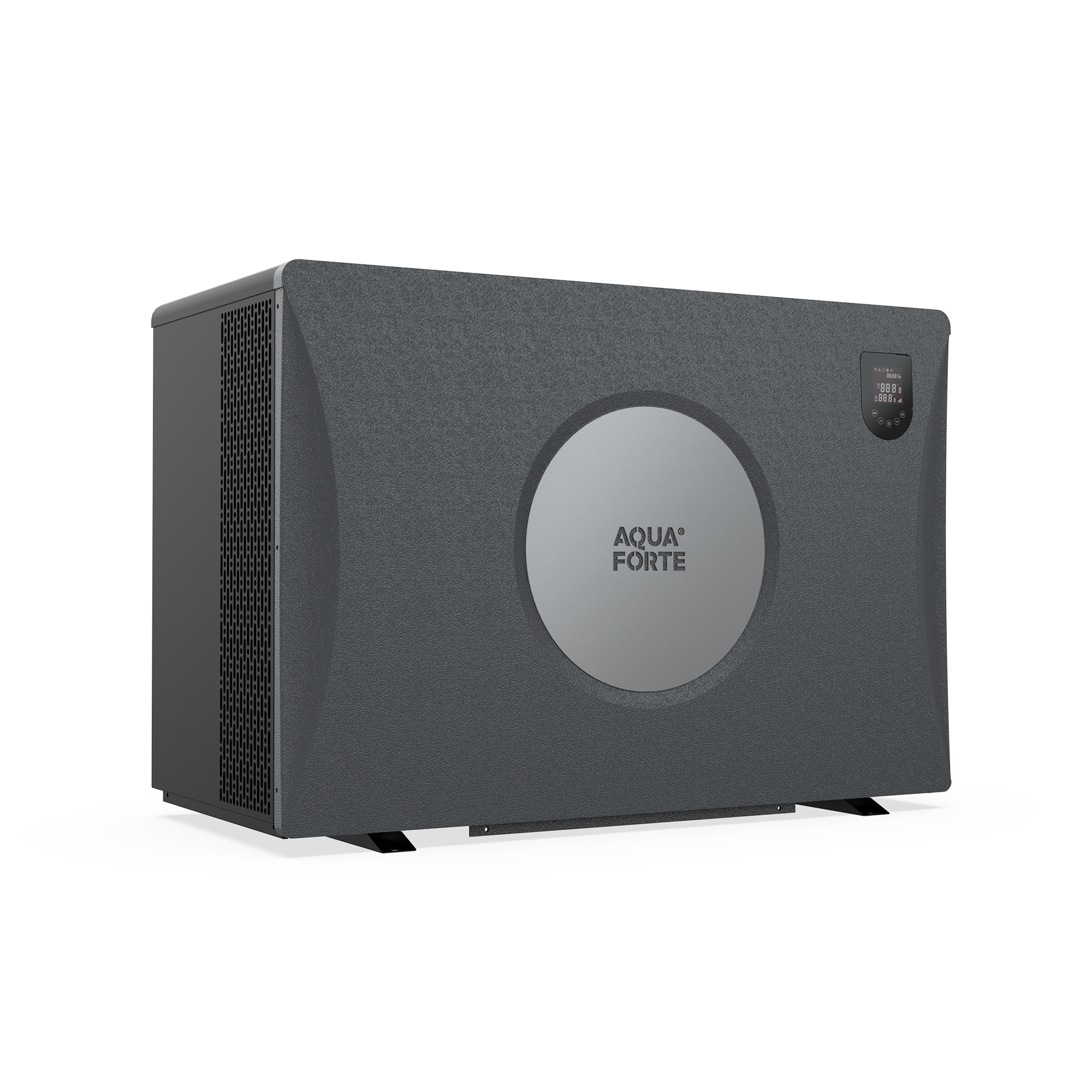

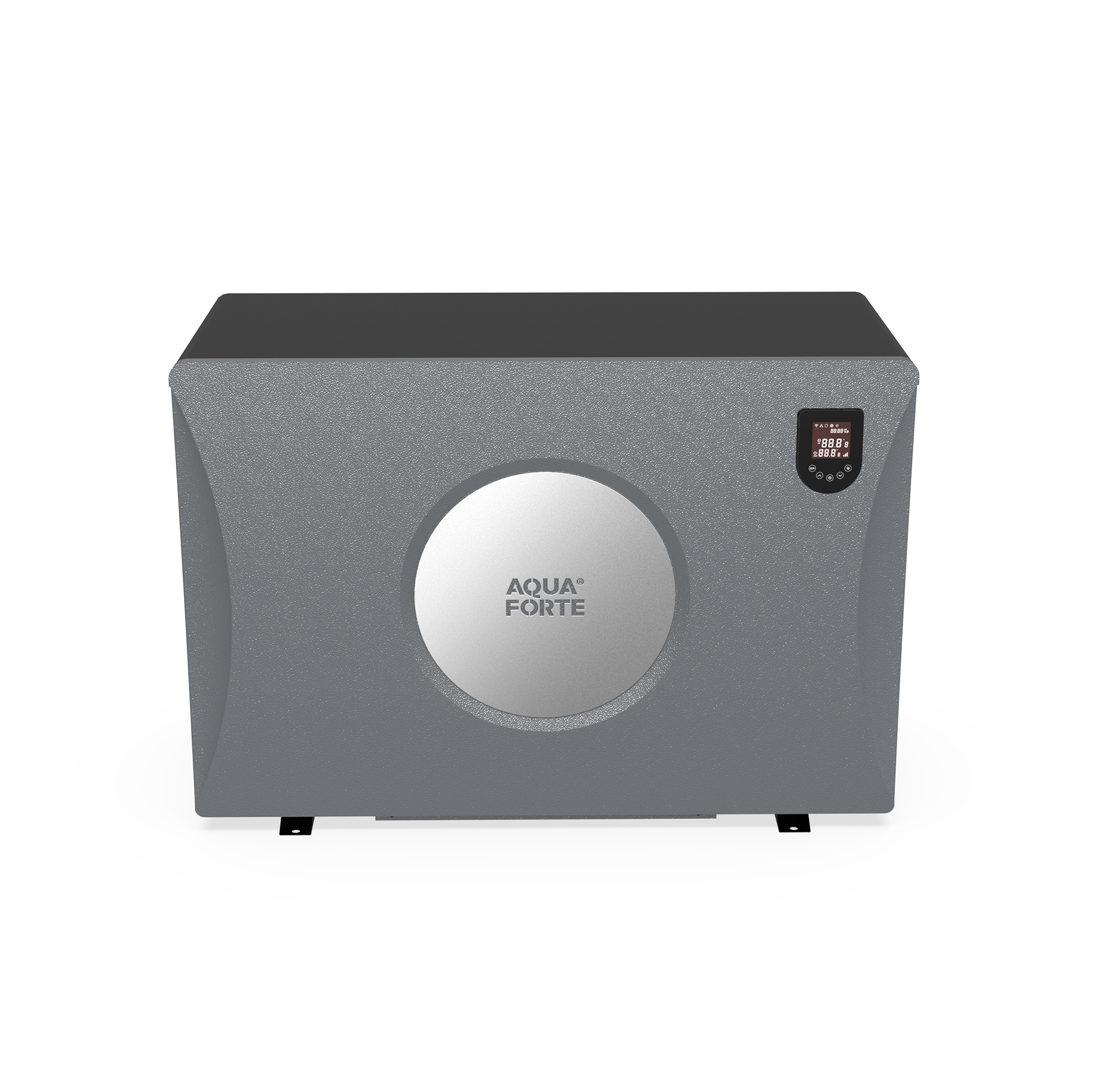

AquaForte Pool Heat Pumps Mr. Silence 30
Available immediately, delivery time: 1-3 days**
New pool heat pumps with full inverter innovation technology.
User-friendly operation with touchscreen and dedicated app.
30 times quieter and 22 times more energy-efficient than conventional heat pumps.
- Description
- Important information
- User manual
- Technical specifications
- FAQs
- Information on product safety
The new AquaForte Mr. Silence heat pumps feature unique, innovative inverter technology. Thanks to the best high-end inverter currently on the market, performance is very impressive (only 40dB noise level, COP values up to 16).
The user-friendly design with touchscreen has already received 5-star ratings from satisfied users.
These heat pumps use a "full inverter" control system, which has only been used by a small number of manufacturers to date (usually so-called "step inverters" are used, which are less stable and cause more noise).
The patented "back discharge" design also ensures unique air circulation! Thanks to this technology, air is drawn in from the sides and blown out at the rear, which has a significant impact on installation.
AquaForte Mr. Silence heat pumps are equipped with Wi-Fi as standard and can be controlled from Apple or Android devices using a special app.
Equipped with connection for control via pool controller. Includes anti-vibration mounts and winter cover.
Efficient from 15°C water temperature.
10-year warranty on the heat exchanger and 5-year warranty on the compressor.
Monday to Friday: 9 a.m. to 5 p.m.
These heat pumps are designed for use with clean pool water.
When using them for ponds, the following should be noted:
Efficiency:
- The heat pumps are only efficient at water temperatures above 15°C. If you want to extend the pond season by three months or heat your pond to above 20°C in summer because your pond is in full shade (difference 3-4°C), these heat pumps are ideal for you.
- Lowest adjustable heating temperature: 18°C, adjustable cooling temperature: 12 - 30°C
- To achieve high efficiency, the pond must be professionally covered, not with thin bubble wrap or pond balls.
- If you want to use the devices on the pond, oversize them. One size larger, possibly two sizes larger if the insulation is poor.
Installation:
- The heat pumps must be supplied with clean water. It is advisable to use a drum or paper filter.
- If the devices are fed with pond water, any biofilm that forms in the device must be cleaned.
- Installation is only easy with gravity filters. In pumped systems, a separate pump must pump the water through the heat pump after mechanical cleaning and feed it back in before the biological filter.
- The heat pumps can be used with salt. They can be used with electrolysis systems with 1.5 to 3 grams of salt per litre.
- The devices are delivered without plugs and must be installed by an electrician.
| Model | MS90 | MS110 | MS130 | MS150 | MS170 | MS210 | MS280 |
| Amperes | 6 | 6 | 10 | 12 | 15 | 17 | 20 |
| Heat output in kW at 27°C air temperature |
9 | 11 | 13 | 15 | 17.5 | 21 | 28 |
| Heat output in kW at 15°C air temperature | 6.6 | 7.7 | 9 | 10.5 | 12.5 | 14.5 | 19 |
| Power consumption in kW | 0.19 - 1.38 | 0.22 - 1.64 | 0.26 - 1.8 | 0.28 - 2.15 | 0.33 - 2.5 | 0.38 - 2.9 | 0.49 - 3.8 |
| Power consumption at 50% output in kW | 0.51 | 0.58 | 0.7 | 0.7 | 0.95 | 1.1 | 1.44 |
| Pool volume m³ (including cover) |
20 - 45 | 30 - 55 | 35 - 65 | 40 - 70 | 40 - 80 | 50 - 95 | 60 - 120 |
| Recommended flow rate m³/h |
2 | 3 | 4 | 5–7 | 6-8 | 8-10 | 10-12 |
| Weight (kg) | 53 | 55 | 57 | 61 | 66 | 72 | 96 |
| Dimensions (LxWxH cm) | 89 x 44 x 65.8 | 89x44x65.8 | 89x44x65.8 | 97x44x65.8 | 106x44x65.8 | 106x44x75.8 | 106x44x95.8 |
| Connection input/output | 50 | 50 | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Noise level at a distance of 1 metre | 36.8–46.2 dB(A) | 36.6–47.9 dB(A) | 40.1–48.7 dB(A) | 39.3–52 dB(A) |
41.1–51.8 dB(A) |
38.9–52.2 dB(A) | 41.5-52.9 dB(A) |
| Noise level at a distance of 10 metres | 16.8–26.1 dB(A) | 16.6–27.9 dB(A) | 20.1–28.7 dB(A) | 19.3–32 dB(A) |
21.1–31.8 dB(A) |
18.9–32.2 dB(A) | 21.5–32.9 dB(A) |
The heat exchanger has an aluminium housing with a built-in Mitsubishi motor and titanium heat exchanger.
Kann Ich die Wärmepumpe auch für Whirlpools / Spas verwenden?
- Bei einem Spa / Whirlpool mit bis zu 10m³ eignet sich das Modell 13,8 kW oder 17,2 kW
