AquaForte Smartsieve Blue
Pre-filter for removing large dirt particles from pond water.
Inexpensive screen filter for gravity installation with 300 micron stainless steel screen element.
The AquaForte SmartSieve Blue is used as a pre-filter to remove large dirt particles from pond water.
The screen arch filter for gravity installation has a 300 micron stainless steel screen element.
It is made entirely of polyethylene, which explains its affordable price.
With a maximum flow rate of 25,000 litres per hour and 2 x 110 mm inlets, the screen filter is ideal for ponds with a maximum volume of 25,000 litres.
Monday to Friday: 9 a.m. to 5 p.m.

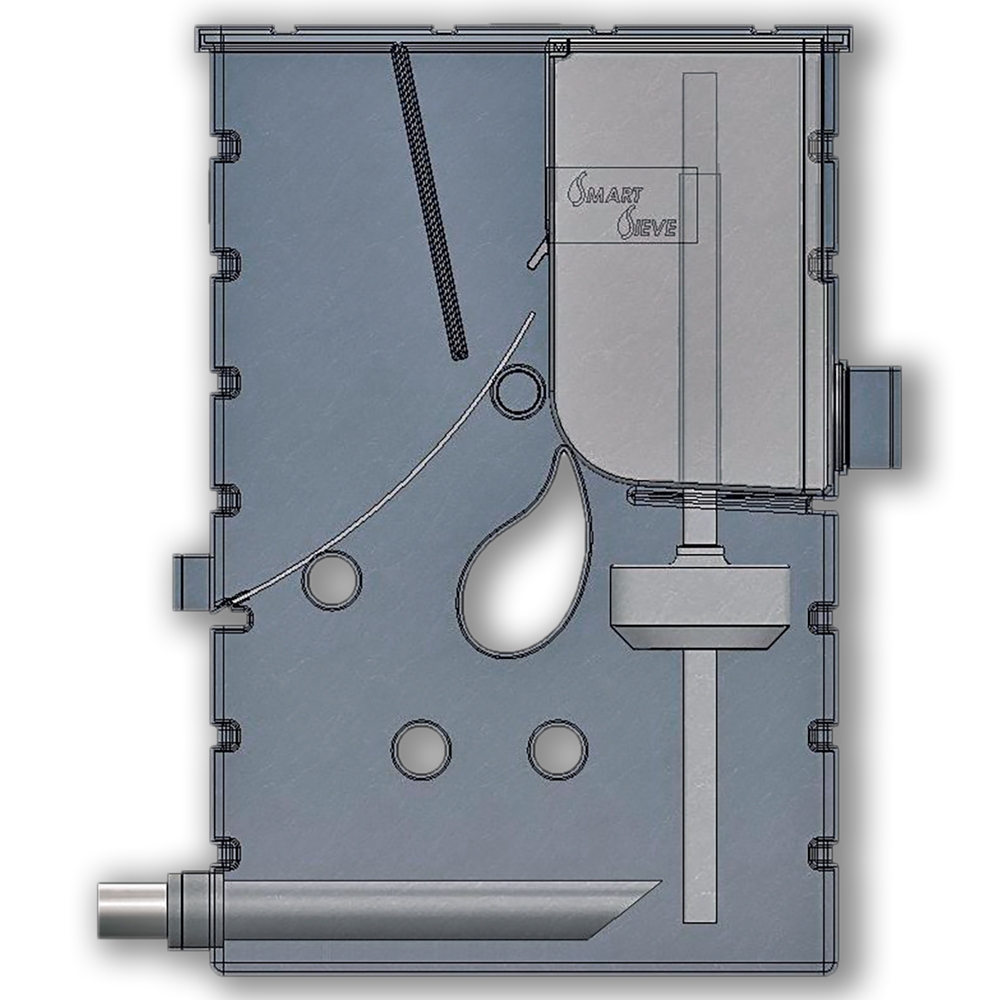

A 63 mm suction pipe should be inserted into the 90/63 mm pump connection so that the connected pump cannot draw in air. (see image no. 6)
We do not recommend installing this in front of a bead filter, as this control valve can cause water to accumulate above the screen, preventing the water from being cleaned.
This item will be delivered on a pallet (by freight forwarder).
Technical data AquaForte SmartSieve Blue:
- Dimensions (LxWxH) 67 x 36 x 101 cm
- Maximum flow rate 25,000 litres
- Screen element 300 microns
- Size of the sieve 71.5 x 40 cm
- Inlet 2 x 110 mm
- Outlet 90/63 mm
- Dirt drain 63 mm incl. flexible sleeve + pull slide 63 mm
- Complete with cover, flexible sleeve 110 mm, flexible end cap 110 mm, flexible reducing sleeve 90/63 mm
