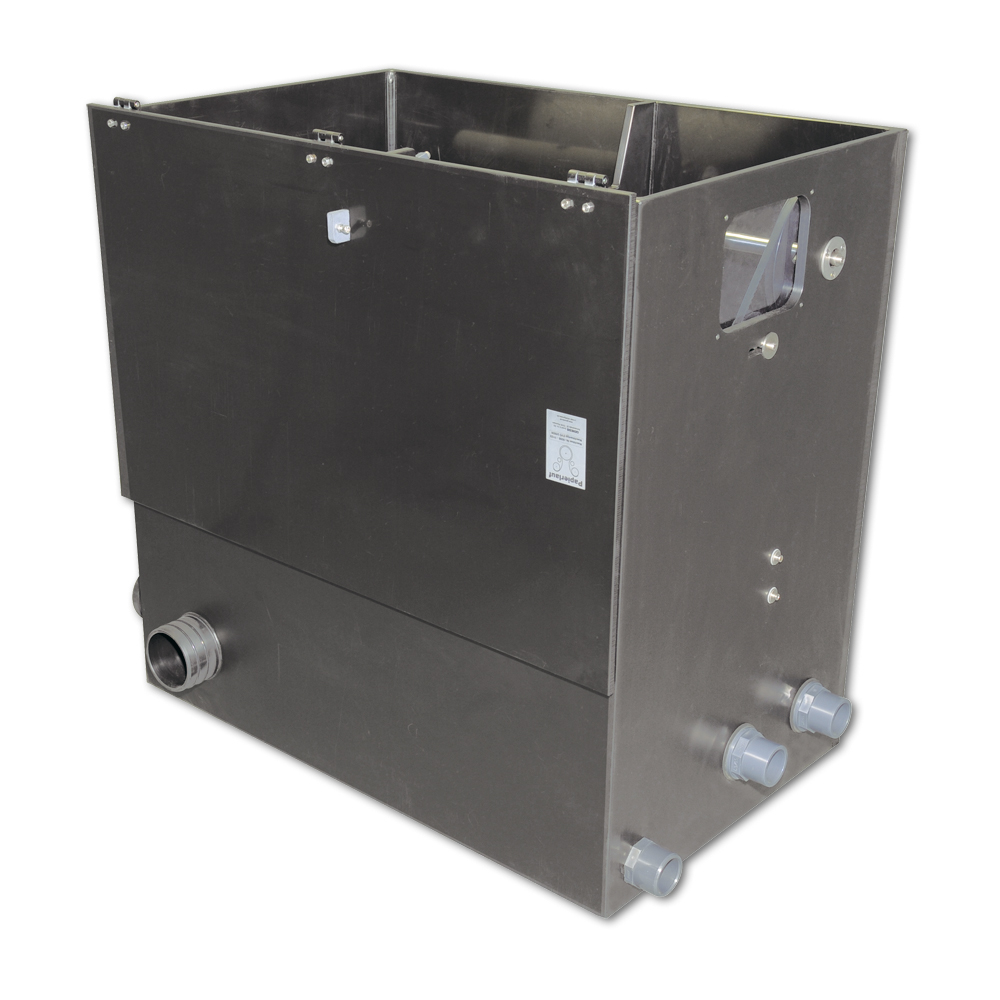

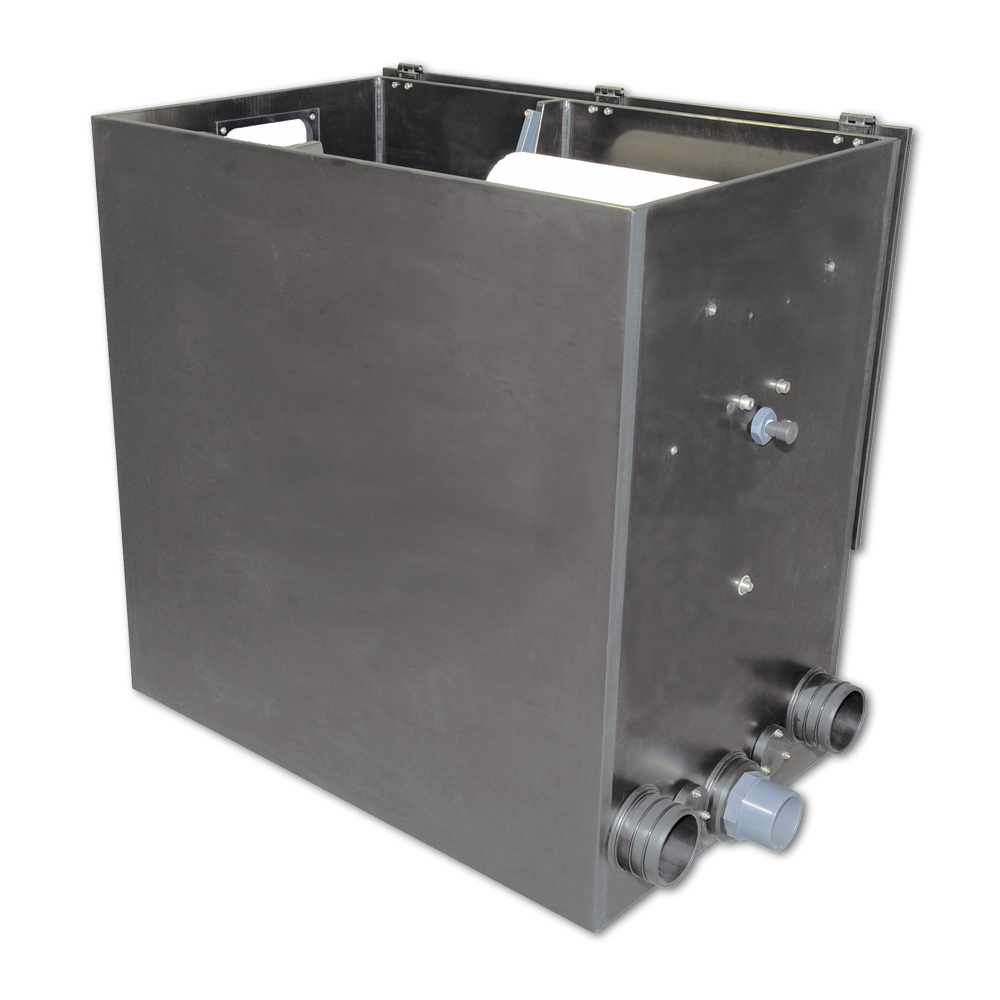

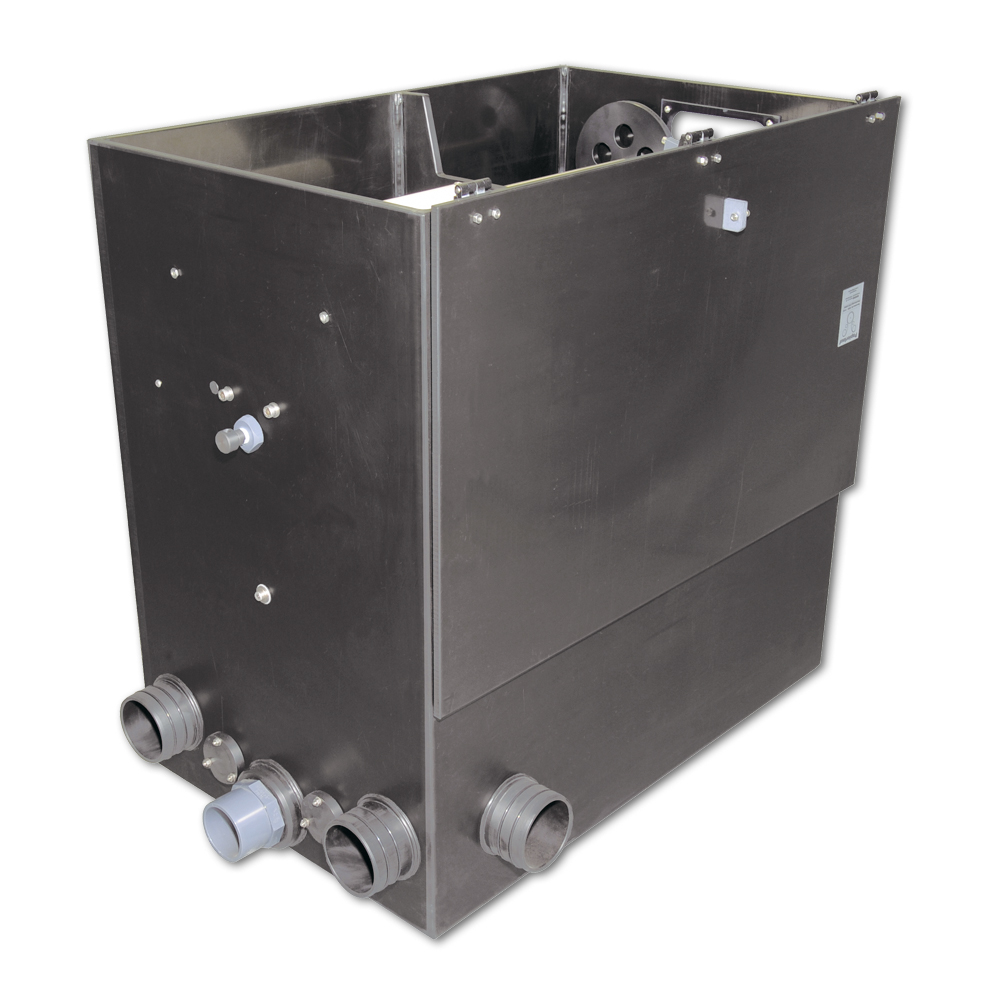

EVO3/500S
Up to 30,000 litres pond volume – Gravity filters are installed below the pond waterline and protrude partially above it. With a protrusion of 30 cm, the EVO3/S models protrude further from the ground than the FS models, but they require less space. Decide for yourself which requirement is most important for your pond.
The filter inlet works on the principle of gravity via floor drains and skimmers. For the return flow, the EVO3/500S is ideally combined with an EVO Blue Stream Controll II 30,000 and then with the EVO Blue Light PE 90/63 or 150/63.
BRILLIANTLY SIMPLE – SIMPLY BRILLIANT – A revolution in filter systems!
Clean water is essential for healthy fish stocks. With the Genesis filter system, you can easily achieve an optimal pond balance between fish and biology. By immediately and permanently separating all solid particles (such as faeces, algae, food residues, leaves, in short, all suspended matter) in the water, we create an ideal basis for the biological stage of the Genesis filter system. Since only particle-free water can enter this biological stage, the performance is enormous.
The filter's mode of operation is so simple that it sounds almost unbelievable. A pump feeds the water into the filter. The water must pass through paper fleece, which immediately retains all suspended particles. The clean water enters the biological stage, where dissolved substances such as ammonium and nitrite are broken down, and from there the water returns to the pond. Over time, the filter fleece becomes increasingly clogged and the water level in the filter rises. An overflow activates a mechanism that automatically moves the filter fleece without electricity until sufficient water flow is achieved again. This prevents overflowing or filter malfunction.
The biological stage, an internal drum, is filled with one of the best and most effective filter materials, Hel-X, to increase biological performance.
This filter sets completely new standards and we are firmly convinced that we are offering you a model that sets the benchmark in terms of quality, workmanship and performance.
Monday to Friday: 9 a.m. to 5 p.m.
Due to the low profit margin on these items, we are unable to offer a loyalty bonus. However, the sales amount will be credited to your account, meaning that you will receive the increased loyalty bonus on all other items. When you purchase one of these items, you will receive a shopping voucher for fish worth 10% of the purchase price (of this item), which you can redeem at any time in our Koi Outlet.
This item is delivered on a pallet (by freight forwarder).
| Model | Pond size | Water flow rate | Inlet (mm) |
Outlet (mm) |
Drainage opening (mm) | Max. chamber filling |
Dimensions LxWxH (mm) |
| 500S | 30,000 | 20,000 l/h | 3x110 | 2x63 | 1x63 / 1x75 | 200 l | 1116 x 705 x 1004 |
| 750SL | 45,000 l | 30,000 l/h | 4x110 | 2x63 | 1x63 / 1x75 | 240 l | 1367 x 760 x 1004 |
| 750S | 60,000 l | 40,000 l/h | 4x110 | 110 | 1x63 / 1x75 | 350 l | 1388 x 885 x 1019 |
| 1000S | 80,000 l | 50,000 l/h | 4x110 | 160 | 2x63 | 450 l | 1668 x 915 x 1019 |
