FIAP Spalt Active 22,000 Gravity version
Available immediately, delivery time: 3-6 Werktage**
Stainless steel gravity split filter with 300 microns and a maximum flow rate of 22,000 litres.
- Description
- Instructions for use
- Important information
- User manual
- Technical specifications
- Product video
- Information on product safety
Premium quality stainless steel.
The FIAP Active 22,000 gravity-fed split screen ensures effective mechanical water treatment. The large-area, high-performance split screen enables pond water to be cleaned of solids measuring 300 microns or more. This low-maintenance, effective pre-filter makes removing dirt particles from the water cycle child's play.
The Spalt Active 22,000 has a 160 mm inlet and outlet. This allows a maximum flow rate of 22,000 litres per hour. There is a 110 mm dirt outlet on the side.
Monday to Friday: 9 a.m. to 5 p.m.

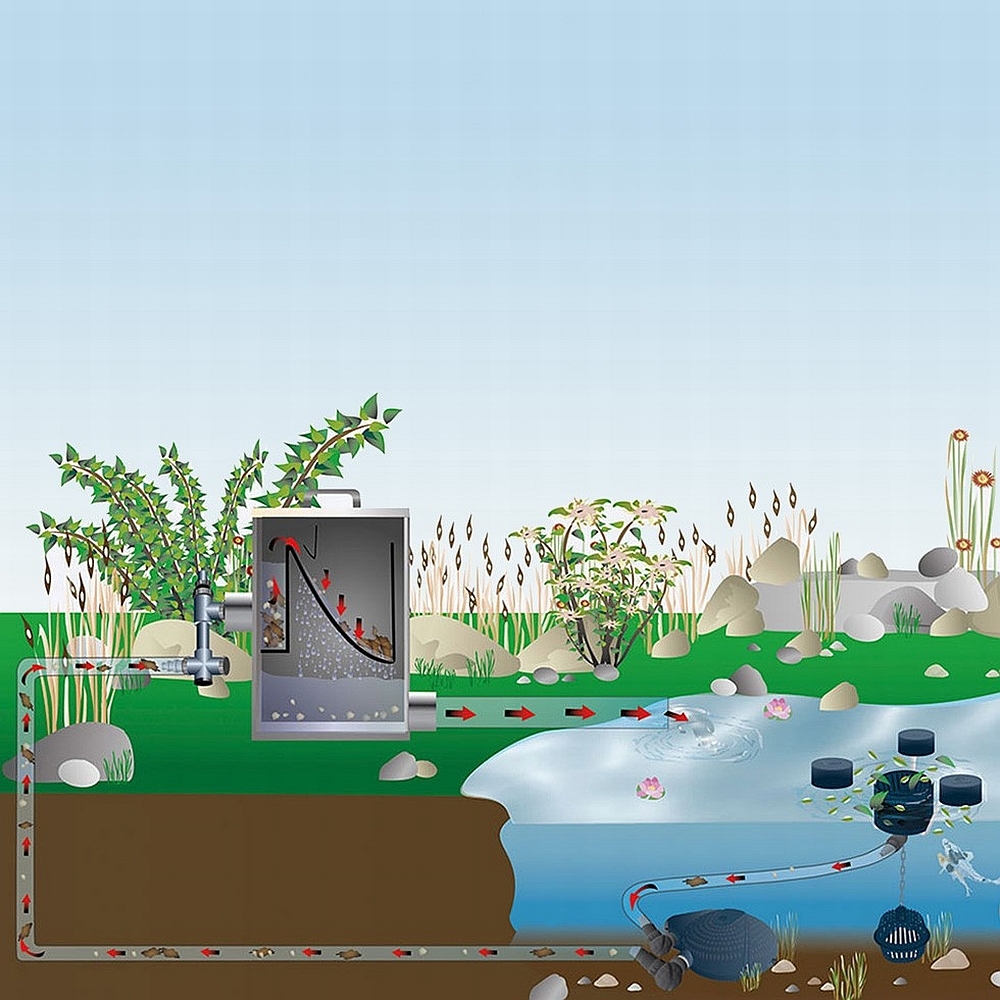

Very easy to use: a submersible pump is placed in the pond. The pump is connected to the screen filter by means of a hose. The water falls through the screen and any debris larger than 0.30 mm remains on the screen.
This item will be delivered on a pallet (by freight forwarder).
| Maximum flow rate in litres per hour | 22,000 |
|---|---|
| Connection inlet | 160 |
| Connection outlet | 160 mm |
| Connection, dirt outlet | DN 100 |
| Coarse dirt separation in microns | 300 |
| Number of filter screen elements in pieces | 1 |
| Installation options | Gravity |
| Weight in kg | 42 kg |
| Dimensions in millimetres | 625 x 500 x 850 |
