FIAP Spalt Active 22,000 pump version
Available immediately, delivery time: 3-6 Werktage**
Pumped stainless steel slotted filter with 300 microns and a maximum flow rate of 22,000 litres.
- Description
- Instructions for use
- Important information
- User manual
- Technical specifications
- Product video
Premium quality stainless steel.
The FIAP Active 22,000 split screen in pump version ensures effective and mechanical water treatment. The large-area high-performance split screen enables pond water to be cleaned of solids from 300 microns. This low-maintenance and effective pre-filter makes removing dirt particles from the water cycle child's play.
The Spalt Active 22,000 has a 160 mm inlet and outlet. This allows a maximum flow rate of 22,000 litres per hour. There is a 110 mm dirt outlet on the side.
Examples of use:
- as a filter directly next to the pond or in front of a waterfall
- As a pre-filter on a pump-fed multi-chamber filter
- As a dirt filter after a skimmer
- as a dirt filter after a sludge extractor, so that the cleaned water can flow back into the pond
Monday to Friday: 9 a.m. to 5 p.m.

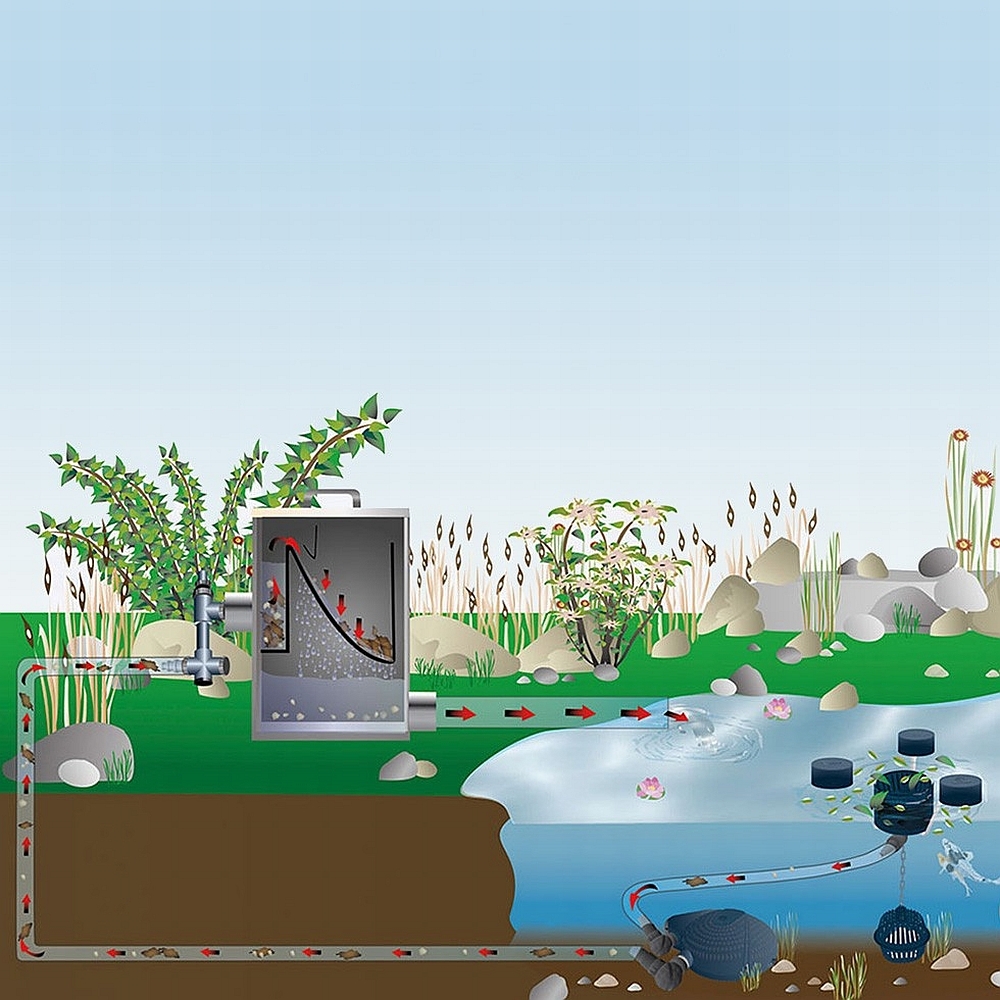

Very easy to use: a submersible pump is placed in the pond. The pump is connected to the screen filter by means of a hose. The water falls through the screen and any debris larger than 0.30 mm remains on the screen.
This item will be delivered on a pallet (by freight forwarder).
| Maximum flow rate in litres per hour | 22,000 |
|---|---|
| Connection inlet | 160 |
| Connection outlet | 160 mm |
| Connection, dirt outlet | DN 100 |
| Coarse dirt separation in microns | 300 |
| Number of filter screen elements in pieces | 1 |
| Installation option | pumped |
| Weight in kg | 42 kg |
| Dimensions in millimetres | 625 x 500 x 850 |
