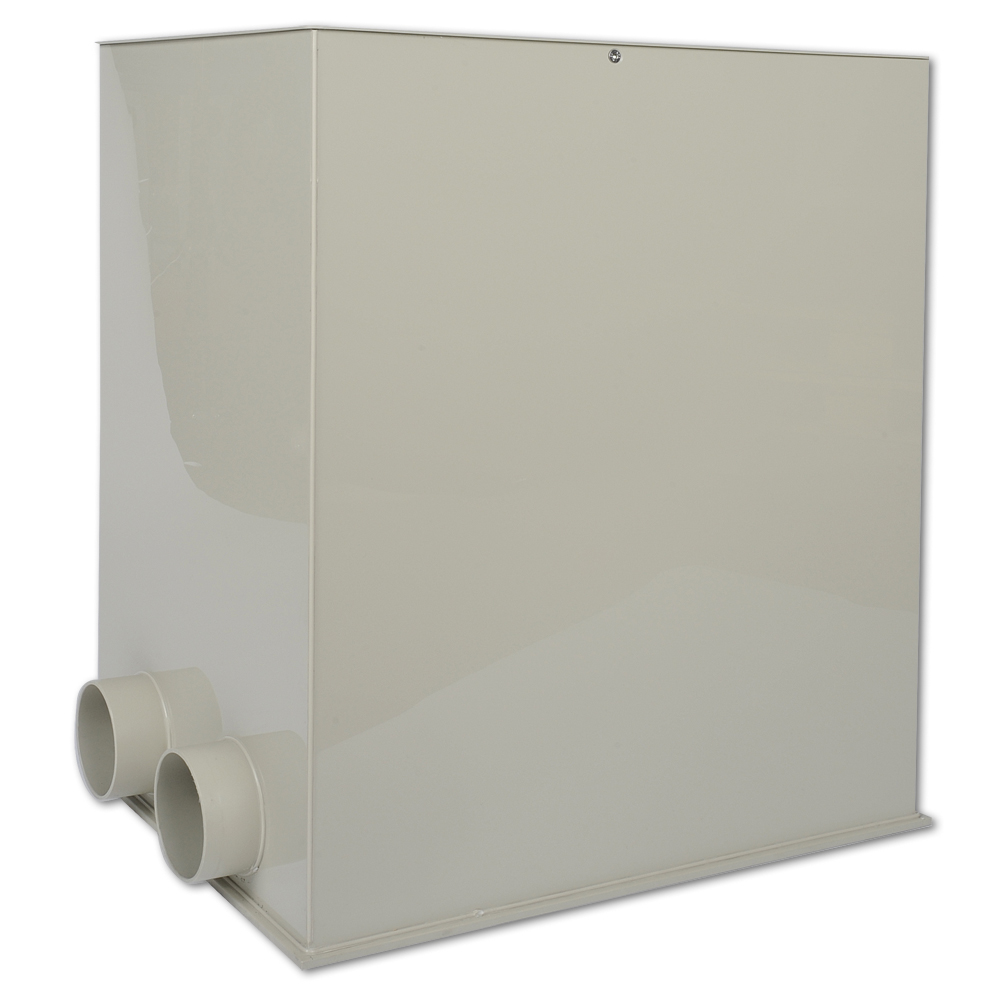

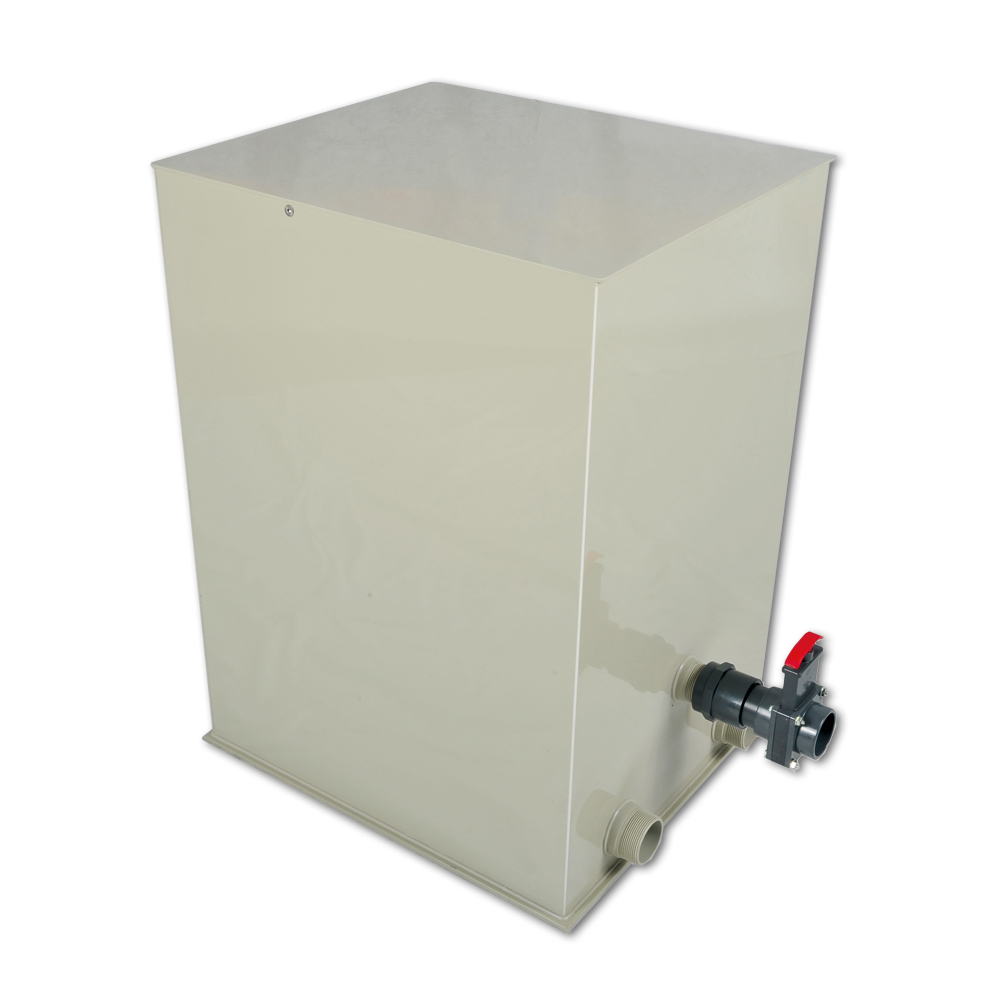

Filtreco Sieve 2 - Industrial UVC Model
Available immediately, delivery time: 1-3 days**
High-quality pre-filter/slot sieve for up to 22,000 litres. For installation of up to 3 x UVC installations.
- Description
- Instructions for use
- Important information
- Technical specifications
- Information on product safety
From the same manufacturer as the multi-chamber filters, Filtreco, we offer two additional slotted filters for medium and large volumes. These slotted filters can only be installed using gravity and are ideal as pre-filters for bead filters.
This version also offers you the option of accommodating three Pond Police Industrial UVCs in the sieve. You have 62 cm of space, so the 44 W, 63 W and 75 W Pond Police lamps are ideal. Threads are also pre-installed so that the lamp can be installed directly in the sieve. The inlets have been placed at the bottom so that the inflowing water flows around the lamp.
Monday to Friday: 9 a.m. to 5 p.m.
After the inlet, you have the option of installing up to three 62 cm long industrial UVC units (Sieve 2/5).
Installation diagram for Sieve 2
The upper edge of the sieve must be installed approx. 4 cm above the pond level.
This item will be delivered on a pallet (by freight forwarder).
Technical data Sieve 2:
- Dimensions (LxWxH) 65 x 49.5 x 78.5 cm
- Maximum input 22,000 litres
- Sieve element 300 micron, the last 5 cm 200 micron
- Size of sieve 44.5 x 40 cm
- Inlet 2 x 110 mm
- Outlet 2 x 2" external thread
- Dirt drain 1 1/2" external thread including threaded sleeve and gate valve
- Complete with cover
