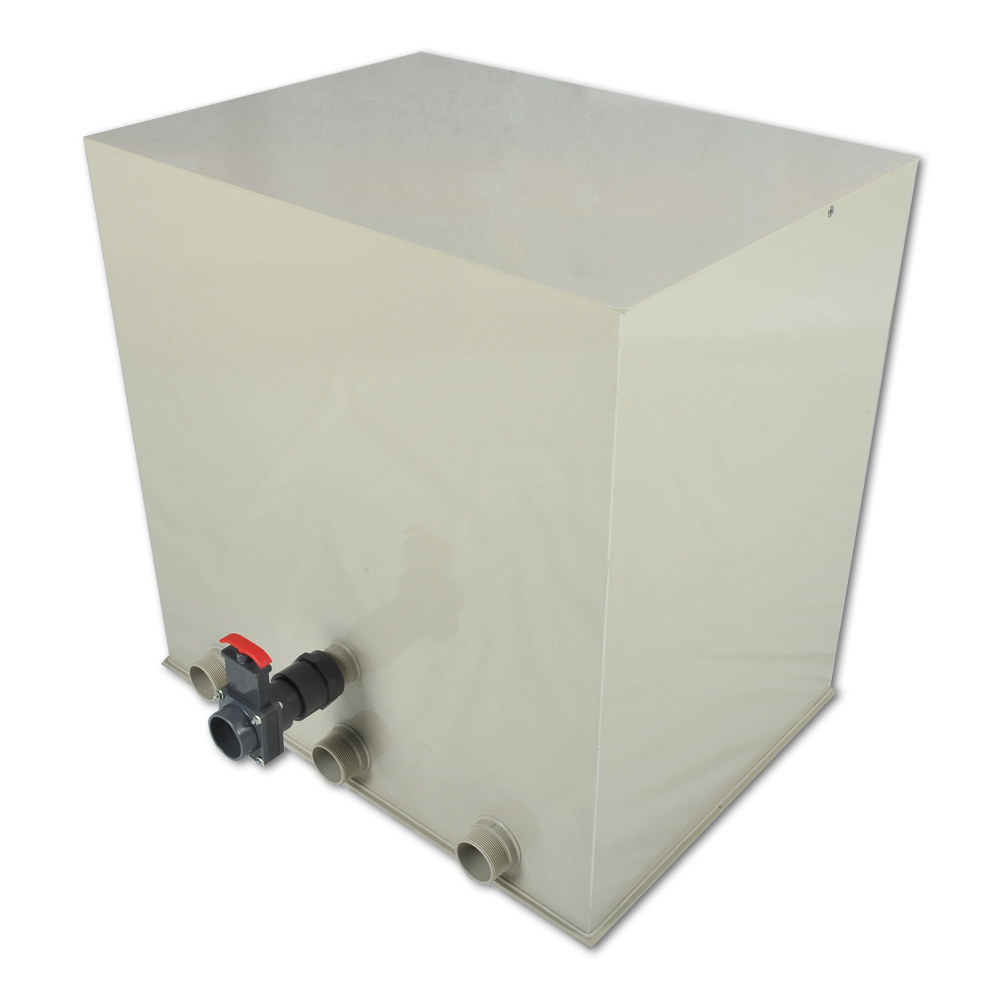

Filtreco Sieve 5
Available immediately, delivery time: 1-3 days**
High-quality pre-filter/slotted sieve for up to 33,000 litres.
- Description
- Instructions for use
- Important information
- Technical specifications
- Information on product safety
From the same manufacturer as the multi-chamber filters, Filtreco, we offer two additional slotted filters for medium and large volumes. These slotted filters can only be installed using gravity and are ideal as pre-filters for bead filters.
Monday to Friday: 9 a.m. to 5 p.m.
After the inlet, you have the option of placing a 40 cm long (Sieve 2) or 60 cm long (Sieve 5) submerged UVC.
Technical drawing Sieve 5
The upper edge of the sieve must be installed approx. 4 cm above the pond level.
This item will be delivered on a pallet (by freight forwarder).
Technical data Sieve 5:
- Dimensions (LxWxH) 56.4 x 76.4 x 75.9 cm
- Maximum input 33,000 litres
- Sieve element 300 micron, the last 5 cm 200 micron
- Size of the sieve 71.5 x 40 cm
- Inlet 3 x 110 mm
- Outlet 3 x 2" external thread
- Dirt drain 1 1/2" external thread including threaded sleeve and gate valve
- Complete with cover
Angaben zur Produktsicherheit:
Hersteller: Filtreco, Nusterweg 69, 6136 KT Sittard, Niederlande
Email: info@wtholland.nl
