Hose nozzles with external thread
| Hose nozzle | Suitable for hose |
| 25 mm x 3/4" | 25 mm / 1" |
| 32 mm x 1" | 32 mm / 1 1/4" |
| 40 mm x 1 1/4" | 40 mm / 1 1/2" |
| 50 mm x 1 1/2" | 50 mm / 2" |
| 63 mm x 2" | 63 mm / 2 1/4" |

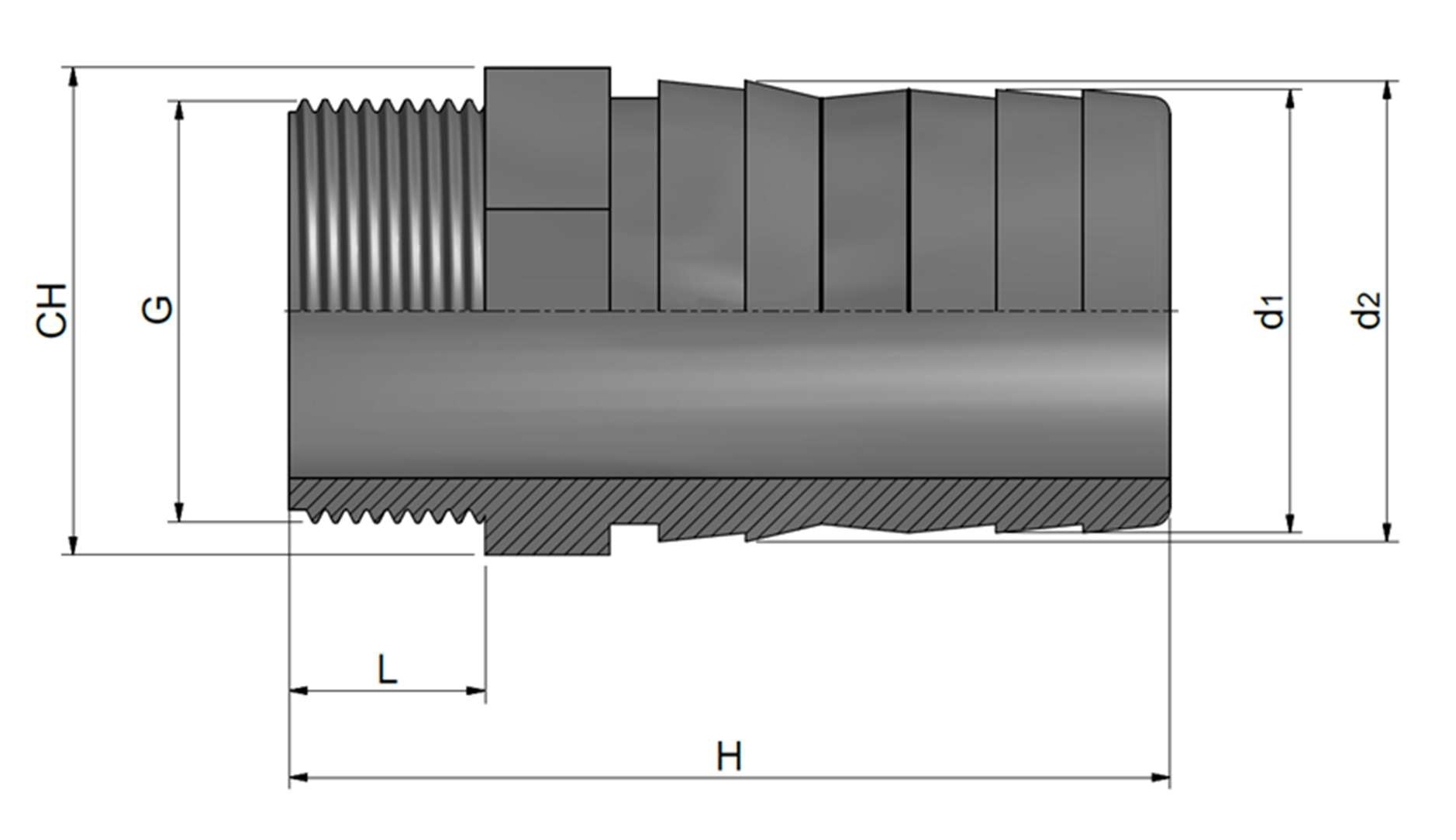

| (G) Thread diameter | (d1) Diameter right | (d2) Diameter (largest) right | (L) Thread length | (H) Total length | (CH) Maximum diameter | Weight |
| 3/4" | 25 | 27 mm | 17 mm | 76 mm | 30 mm | 30 g |
| 1 | 32 mm | 34 mm | 20 mm | 80mm | 36 mm | 50 g |
| 1 1/4" | 40 mm | 42 mm | 22 mm | 92 mm | 46 mm | 70 g |
| 1 1/2" | 50 mm | 52 mm | 23 mm | 99 mm | 55 mm | 118 g |
| 2 | 60 mm | 63 mm | 26 mm | 118mm | 65 | 190 g |
