Inazuma Drum Filter Quantum 90
Available immediately, delivery time: 1-3 days**
Up to 50,000 litres pond volume
– The filter is made of V2A stainless steel. Can be used universally as a gravity or pumped version. The Inazuma Quantum 90 drum filter cleans your pond thoroughly, reliably and fully automatically, without any consumables, saving energy and conserving resources.
The Quantum series offers excellent quality and high-level workmanship.
The Inazuma Quantum 90 drum filter from the Quantum series cleans your pond thoroughly, reliably and fully automatically. It is suitable for use in garden ponds up to 90 m³. For koi ponds up to 50 m³.
Everything included, everything attached – the Quantum 90 combines mechanical water cleaning with biological water clarification. When the water is cleaned by the drum, particles larger than 50 µ are filtered out. Algae can also be effectively combated with an optionally available UV-C lamp. The low maintenance costs
of an Inazuma filter are extremely pleasing. It only requires purified pond water for the rinsing process and no consumables such as fleece. Instead, impurities are reliably removed from the system by the robust drum covering with 50μ V2A stainless steel mesh.
Many plastic filters available on the market no longer work properly after just a few years, as the changing seasons and different temperatures take their toll. What was once thought to be a bargain purchase turns out to be a total financial write-off.
Not so with Inazuma – the solid construction and the use of corrosion-resistant, industrial-grade V2A stainless steel make the Inazuma Quantum 90 a reliable worker in your garden pond for many years – a real alternative to the plastic filters available on the market.
The filter can be used for pump operation as well as for gravity-fed installation.
The filter can be expanded modularly with the Quantum bio chamber.
The removable lid allows easy access to the inside of the filter, while the V2A stainless steel body guarantees long-lasting quality.
For those who want more control and adjustment
options A control unit is not included with the filter; please choose between the two control units:
Clever V8 (microprocessor control)
Based on our 15 years of experience in filter construction, the optimal parameters for flushing times, flushing duration and other key figures are permanently stored in the control system. No configuration (except for the filter installation type, which is set with a simple DIP switch on the circuit board) or adjustment is necessary; flushing is performed automatically.
Professional WiFi control with app for Android & iOS: For even more convenience and flexibility, the free INAZUMA app allows you to view and control many parameters conveniently from anywhere in the world using your mobile phone or tablet.
The system can be individually adapted to your needs with a PowerSwitch extension, temperature sensor and level control.
The Professional WiFi control can also be used with the app without an internet connection.
The filter is equipped with SpeedFlush automatic gutter flushing and PreFlush pre-chamber flushing.
The guaranteed supply of spare parts directly from the manufacturer ensures many years of enjoyment with a solid, low-maintenance filter made in Germany.
The Quantum series features the proven drive train from the previous series. The drive motor, shaft and filter drum have fixed mounting points, so there is no need to adjust the distance between the drum and the seal. There is also no drum clamping. This is extremely practical, as this innovation makes the filter system virtually maintenance-free.
Technical refinements such as special, maintenance-free and durable bearings for the drum guide rollers further improve concentricity and significantly reduce operating noise during drum cleaning. The filter housings are made of V2A stainless steel. A newly developed motor mount and additional solid stainless steel struts on the inside and outside of the filter provide the necessary rigidity.
In addition to a 2-year manufacturer's warranty including on-site service throughout the United Kingdom, you have the option of purchasing an optional warranty extension for a further 2 years. All in all, you can get at least a "4-year all-round carefree package" together with the drum filter. Quality – made in Germany.
We do not offer a loyalty bonus or fish voucher for this item.
.png "lifetime")
Monday to Friday: 9 a.m. to 5 p.m.

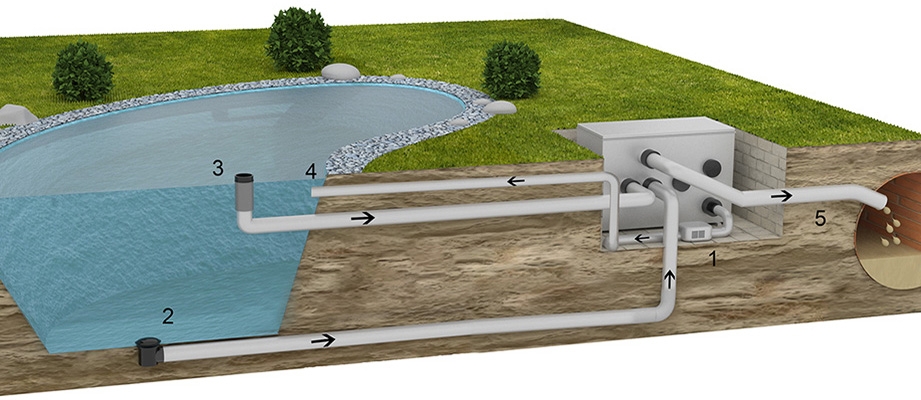

Gravity version
1 - Pond pump
2 - Bottom drain
3 - Skimmer
4 - Return to the pond (cleaned water)
5 - Dirt drain (channel, drainage shaft, hedge) Pump/gravity version
Pump/gravity version
1 - Pond pump
2 - Bottom drain with filter
3 - Skimmer
4 - Pump chamber (gravity)
5 - T-piece open at the top for venting the return line
6 - Return to the pond (cleaned water)
7 - Dirt drain (channel, drainage shaft, hedge)

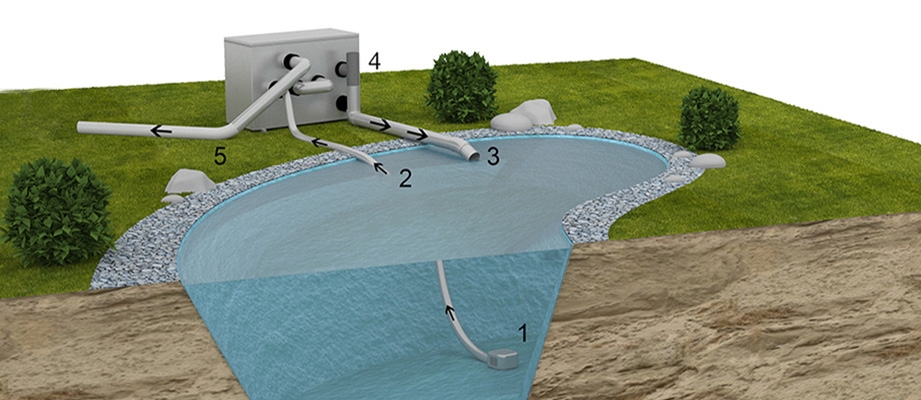

Pump version
1 - Pond pump
2 - Connection between pond pump and
filter 3 - Return to pond (cleaned water)
4 - T-piece open at the top for venting the return line
5 - Dirt drain (sewer, drainage shaft, hedge)
Due to the tight margins on these items, we are unable to offer a loyalty bonus. However, the sales amount will be credited to your account, so you will receive the increased loyalty bonus on all other items.
This item is delivered on a pallet (by freight forwarder).
| Koi ponds up to: | 50 m³ |
| Garden ponds up to: | 90 m³ |
| Installation type: | Gravity, pumped |
| Max. flow rate gravity: | 30 m³/h |
| Max. flow rate pumped: | 25 m³/h |
| Immersed screen area: | 412,600 mm² |
| Drum covering V2A: | 50 μ |
| HD-PRO 50,000 radiators that can be used: | 4 |
| Weight: | approx. 80 kg |
| Integrated biochamber: | No |
| Returns (DN 100): | 3 |
| Inlets (DN100): | 3 |
| Waste water (DN 100): | 1 |
| Dimensions (LxWxH) | 810 x 901 x 680 mm |
Control system dimension
drawing:
The filter is sold without a control system. Please select the Clever 8 or Professional WiFi control system.
