Inazuma drum filter Quantum 60 Biocompact
Available immediately, delivery time: 1-3 days**
Up to 30,000 litres pond volume – The filter is made of V2A stainless steel. Can be used universally as a gravity or pumped version. All filters in the Quantum series come with a simple yet ingenious microprocessor control system – just plug it in and you're ready to go.
The drum filter has an integrated bio chamber, giving you a complete, space-saving system with an integrated biological stage. Supplied without bio media. The Quantum series offers excellent quality and high-level workmanship.
The Inazuma Quantum 60 Biocompact drum filter from the Quantum series cleans your pond thoroughly, reliably and fully automatically. It is suitable for use in garden ponds up to 60 m³. For koi ponds up to 30 m³.
Biocompact models have an integrated biochamber
, forming a complete, space-saving system with an integrated biological stage – a particular advantage when installing a new filter system. A connection for an air hose to aerate the biology is included.
Everything included, everything attached – the Quantum 60 Biokompakt combines mechanical cleaning of the water with biological water clarification. When the water is cleaned by the drum, particles larger than 50 µ
are filtered out. Algae can also be effectively combated with an optionally available UV-C steel
. The low maintenance costs
of an Inazuma filter are extremely pleasing. It only requires purified pond water for the rinsing process and no consumables
such as fleece. Instead, contaminants are reliably removed from the system by the robust drum covering with 50μ V2A stainless steel screen mesh.
Many plastic filters available on the market no longer work properly after just a few years, as the changing seasons and different temperatures take their toll. What was once thought to be a bargain purchase turns out to be a total financial write-off.
Not so with Inazuma – the solid construction and the use of
corrosion-resistant, industrial-grade V2A stainless steel
make the Inazuma Quantum 60 Biokompakt a reliable worker in your garden pond for many years to come – a real alternative to the plastic filters available on the market.
The filter can be used for pump operation
as well as for gravity-
fed installation.
The filter can be expanded modularly with the Quantum bio chamber.
The lid with gas shock absorbers
allows easy access to the inside of the filter, while the V2A stainless steel body guarantees long-lasting quality.
All filters in the Quantum series come with the simple yet ingenious Clever V8 microprocessor control system.
No configuration (except for the filter installation type, which is set using a simple DIP switch on the circuit board) or adjustment is necessary; rinsing is performed automatically.
The filter is equipped with the SpeedFlush
automatic gutter rinsing system and the PreFlush
pre-chamber rinsing system.
The guaranteed supply of spare parts
directly from the manufacturer ensures many years of enjoyment with a solid, low-maintenance filter made in Germany.
The Quantum series features the proven drive train from the previous series. The drive motor, shaft and filter drum have fixed mounting points, so there is no need to adjust the distance between the drum and the seal. There is also no drum clamping. This is extremely practical, as this innovation makes the filter system virtually maintenance-free.
Technical refinements such as special, maintenance-free and durable bearings for the drum guide rollers further improve concentricity and significantly reduce operating noise during drum cleaning. The filter housings are made of V2A stainless steel. A newly developed motor mount and additional solid stainless steel struts on the inside and outside of the filter provide the necessary rigidity.
In addition to a 2-year manufacturer's warranty including on-site service throughout the United Kingdom, you have the option of purchasing an optional warranty extension for a further 2 years. All in all, you can get at least a "4-year all-round carefree package" together with the drum filter. Quality – made in Germany.
We do not offer a loyalty bonus or fish voucher for this item.
.png "lifetime")
Monday to Friday: 9 a.m. to 5 p.m.
Gravity version
1 - Pond pump
2 - Bottom drain
3 - Skimmer
4 - Return to pond (cleaned water)
5 - Dirt drain (channel, drainage shaft, hedge)
Pump/gravity version
1 - Pond pump
2 - Bottom drain with filter
3 - Skimmer
4 - Pump chamber (gravity)
5 - T-piece open at the top for venting the return line
6 - Return to the pond (cleaned water)
7 - Dirt drain (channel, drainage shaft, hedge)
Pump version
1 - Pond pump
2 - Connection between pond pump and
filter 3 - Return to pond (cleaned water)
4 - T-piece open at the top for venting the return line
5 - Dirt drain (sewer, drainage shaft, hedge)
Due to the tight margins on these items, we are unable to offer a loyalty bonus. However, the sales amount will be credited to your account, so you will receive the increased loyalty bonus on all other items.
This item is delivered on a pallet (by freight forwarder).
| Koi ponds up to: | 30 m³ |
| Swimming ponds up to: | 60 m³ |
| Installation type: | Gravity, pumped |
| Max. flow rate Gravity with TSS≤10mg/ℓ : | 20 m³/h |
| Max. flow rate pumped at TSS≤10mg/ℓ : | 15 m³/h |
| Immersed screen area: | 294,700 mm² |
| Drum covering V2A: | 50 μ |
| HD-PRO 50,000 jet nozzles that can be used: | 4 |
| Weight: | approx. 107 kg |
| Integrated biochamber: | Yes |
| Usable bio volume: | approx. 300 l |
| Usable quantity of Hel-X® 17 KLL: | approx. 100 l |
| Degradable feed per day: | approx. 650 g |
| Returns (DN 100): | 2 |
| Inflows (DN100): | 2 |
| Waste water (DN 100): | 1 |
| Dimensions (LxWxH): | 1200 x 801 x 930 mm |

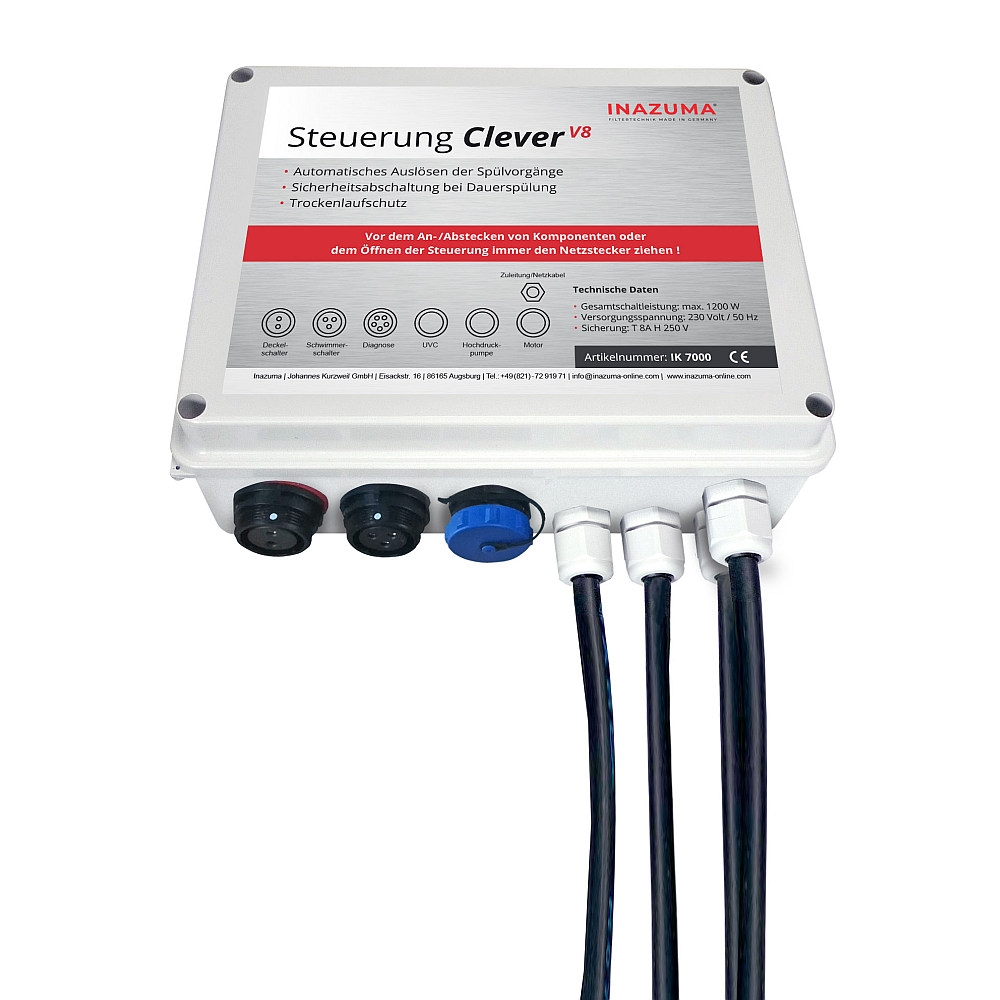

Clever V8 control system:
State-of-the-art microelectronics control the flushing processes and connected devices such as the high-pressure pump, gear motor and UVC lamp. At the same time, they monitor the water level in the filter system (dry-running protection).
