Mini Super Sieve with 300 micron sieve
Mini screen including large screen and individual connection options for up to 22,000 litres.
Pump-fed screen bend filter
Suggestions from our customers have been incorporated into this new screen. The manufacturer has taken most of this information on board, enabling us to offer you a completely redesigned pump-fed screen element.

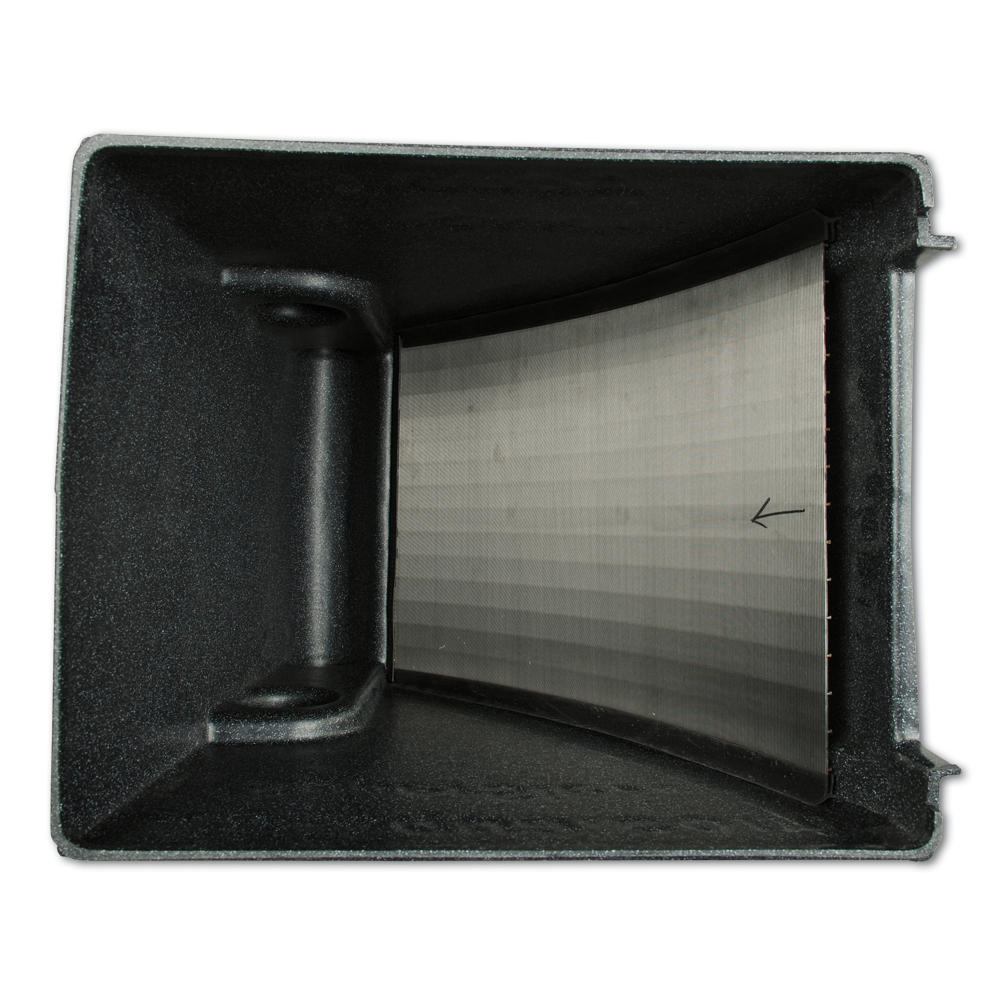

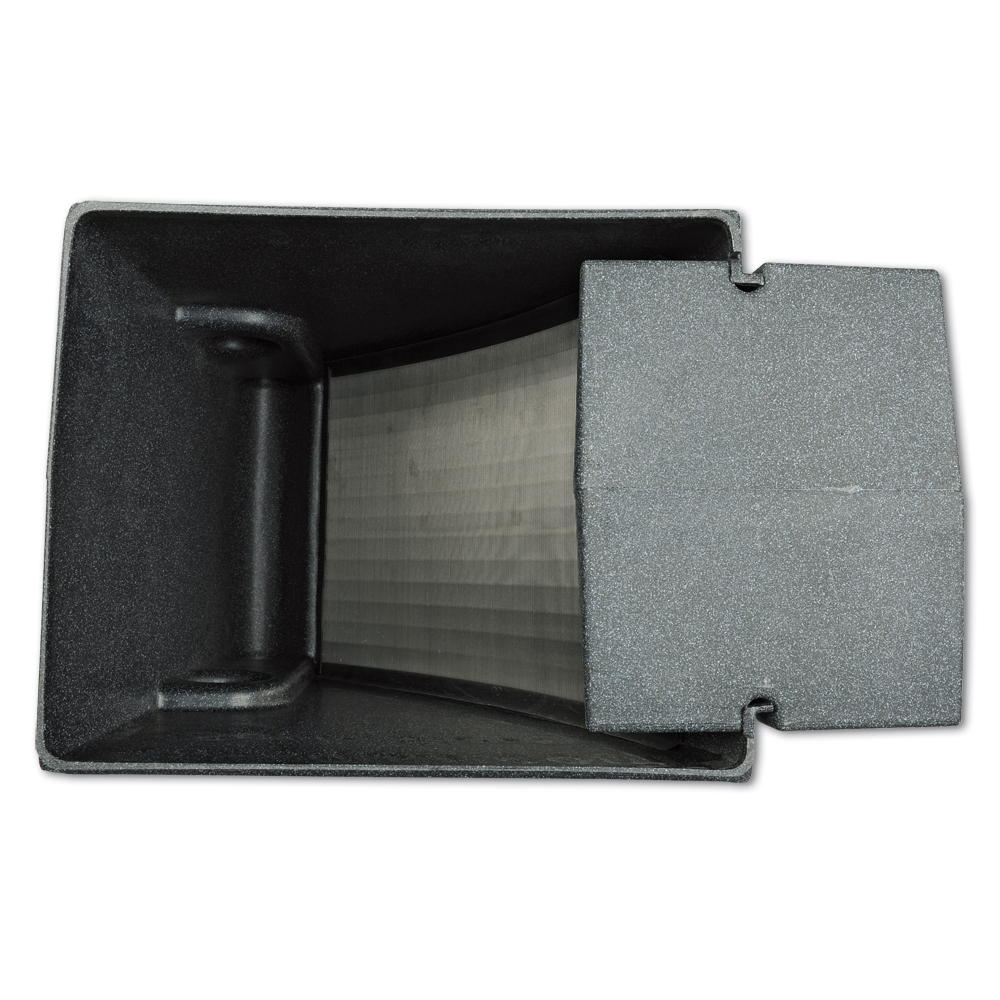

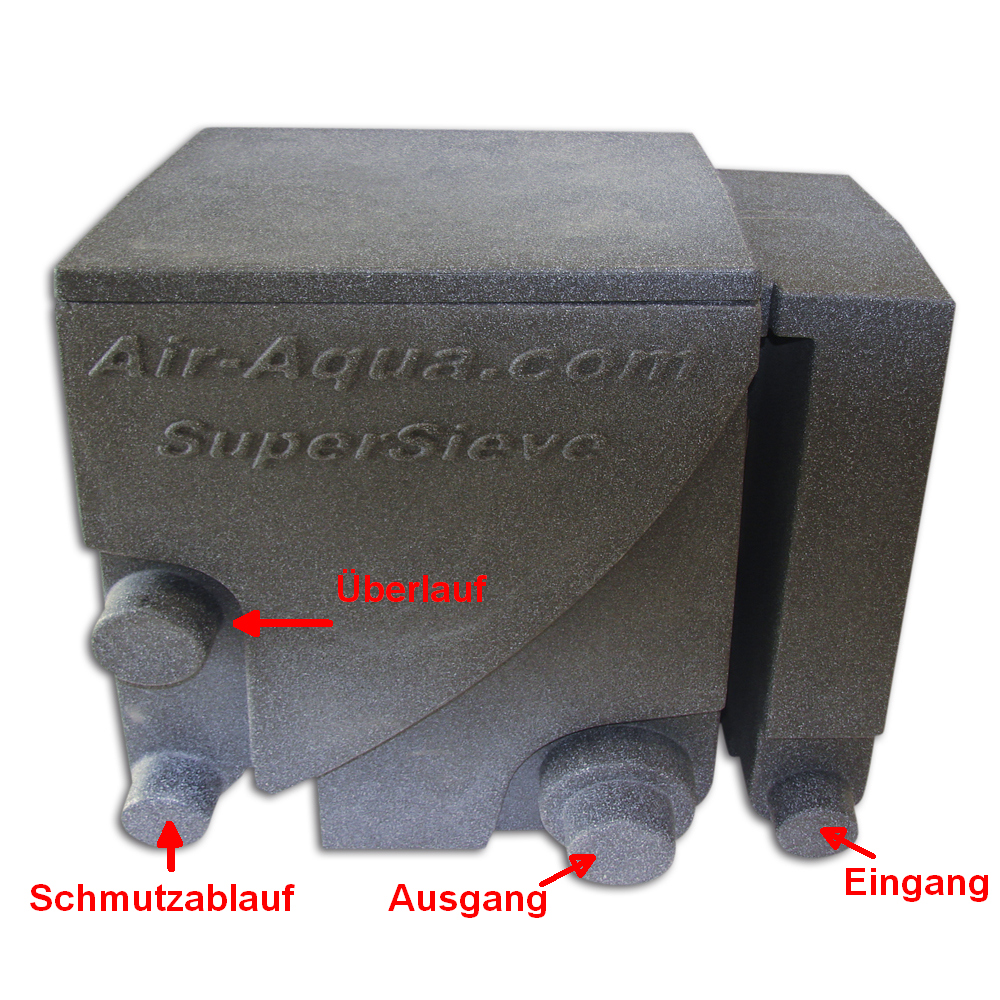

The stainless steel screen element is 32 cm wide and 46 cm long, the same size as the large screen filters, and has a mesh width of 300 microns. The maximum capacity is 22m³/h. Water is fed in via a 63mm connection piece. A 63mm flexible sleeve with a threaded sleeve and 3-stage hose nozzle 25/32/40mm (all included) can be connected to this. The outlet is a 75/110 mm connection piece. The housing is made of PE and includes a cover. The overflow protection is 75 mm and the dirt drain is 63 mm. All connection pieces are available on both sides. You only need to saw open the openings you require.
Examples of use:
- as a filter directly next to the pond or in front of a waterfall
- As a pre-filter on a pump-fed multi-chamber filter
- As a dirt filter after a skimmer
- As a dirt filter after a sludge extractor, so that the cleaned water can flow back into the pond
The delivery includes a lid, flexible sleeve 63 mm and universal hose nozzle.
Monday to Friday: 9 a.m. to 5 p.m.
Very easy to use: a submersible pump is placed in the pond. The pump is connected to the screen filter by means of a hose. The water falls through the screen and any debris larger than 0.30 mm remains on the screen. The CompactSieve must always be placed above the water surface.
| Model | Connection inlet (mm) |
Drain connection (mm) |
Overflow connection (mm) |
Drainage outlet (mm) | Dimensions LxWxH (mm) |
Weight (kg) |
| Mini SuperSieve | 2 x 63 mm flexible sleeve | 2 x 75/110 flexible sleeve | 2 x 75 mm flexible sleeve | 2 x 63 mm | 540 x 400 x 600 | 9 |
