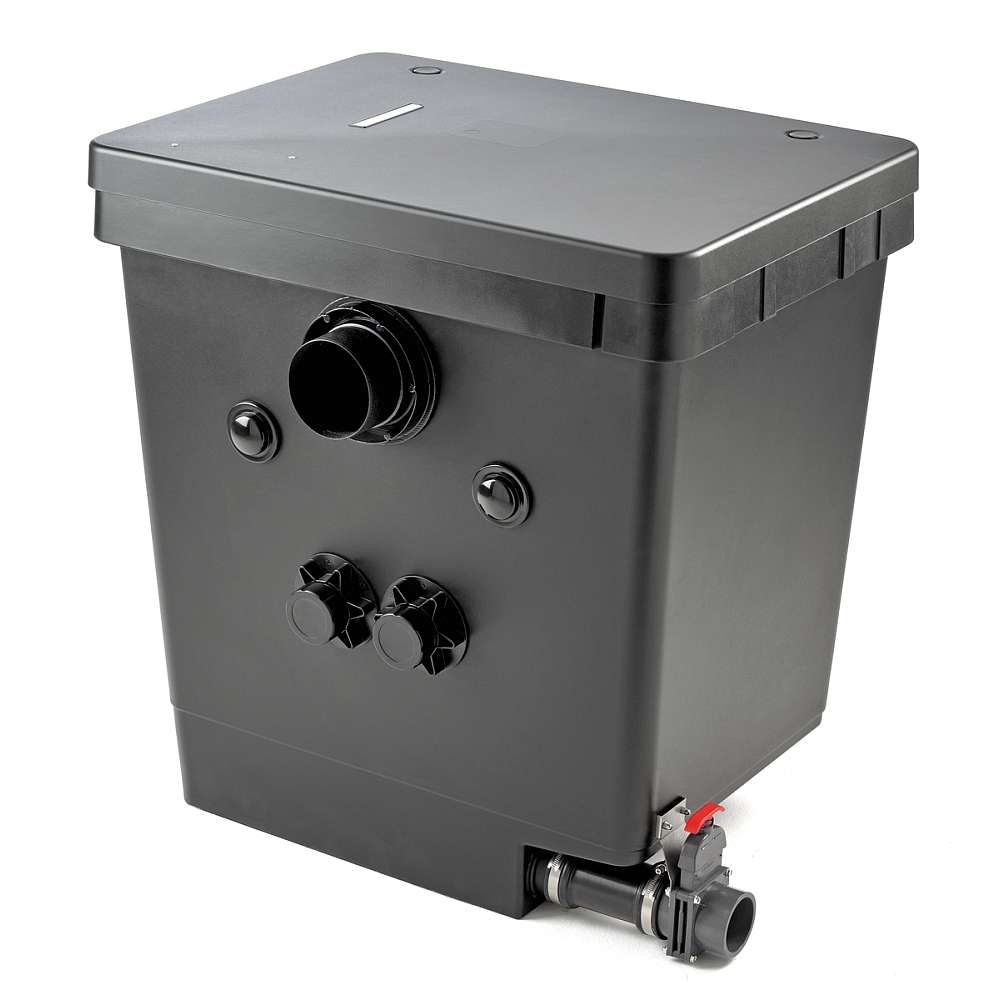

OASE ProfiClear Premium Drum Filter TF-L Pumped OC
Available immediately, delivery time: 3-6 Werktage**

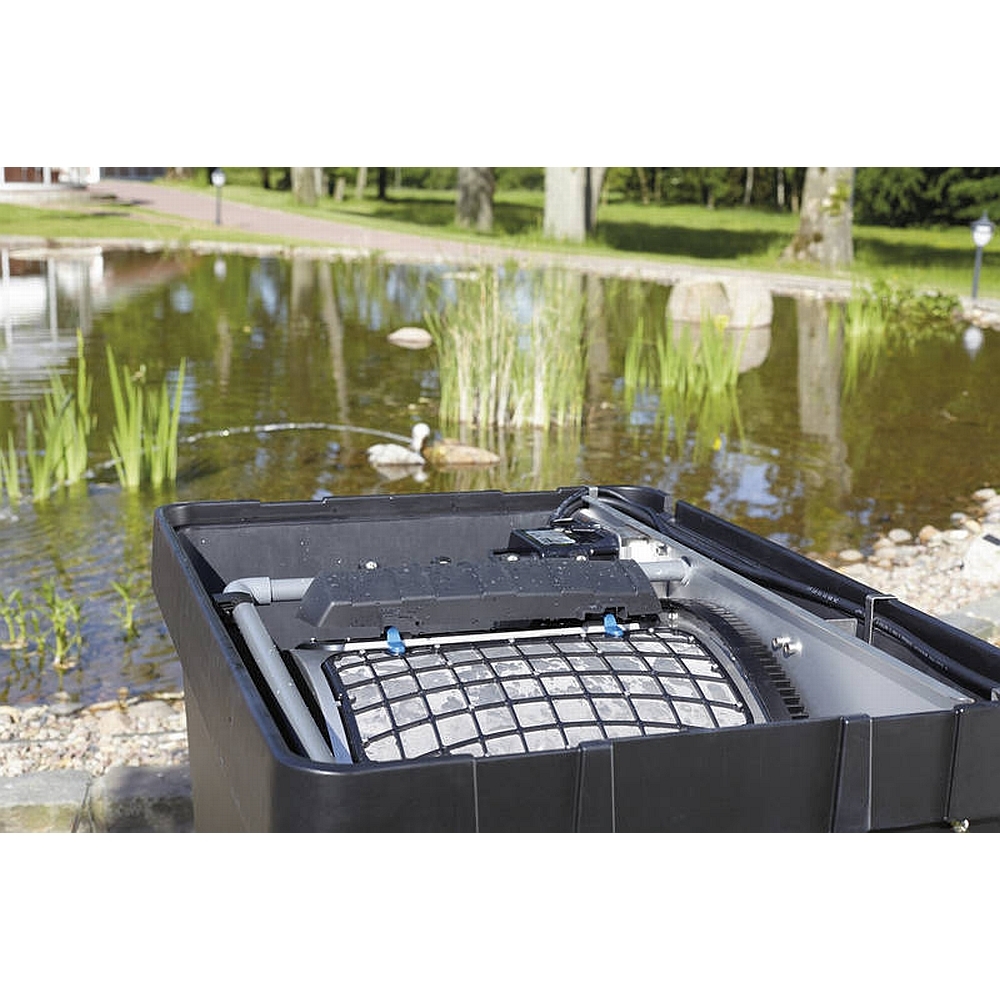

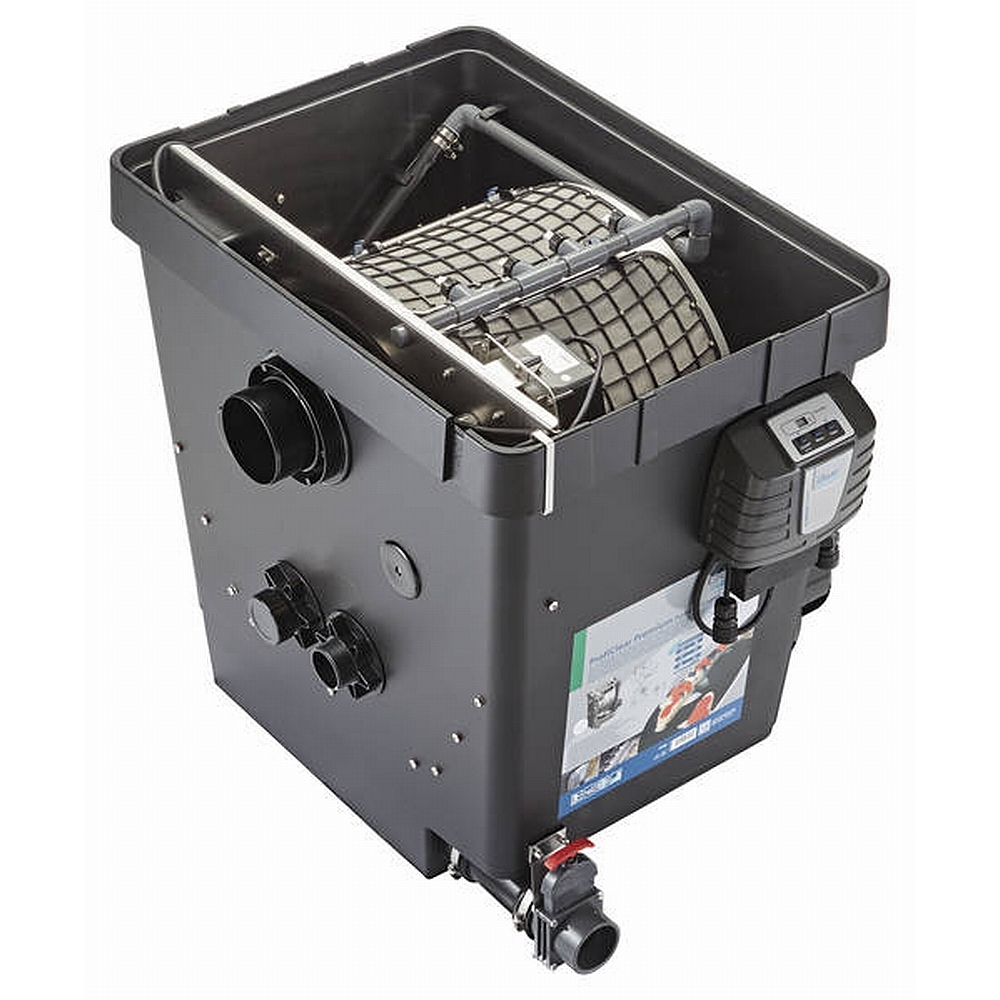

The continuous flow drum filter from OASE is a modern modular filter system for professional water quality in confined spaces.
With its depth filtration of 60 microns, it offers very fine and high mechanical filtration of suspended solids.
We now offer another drum filter.

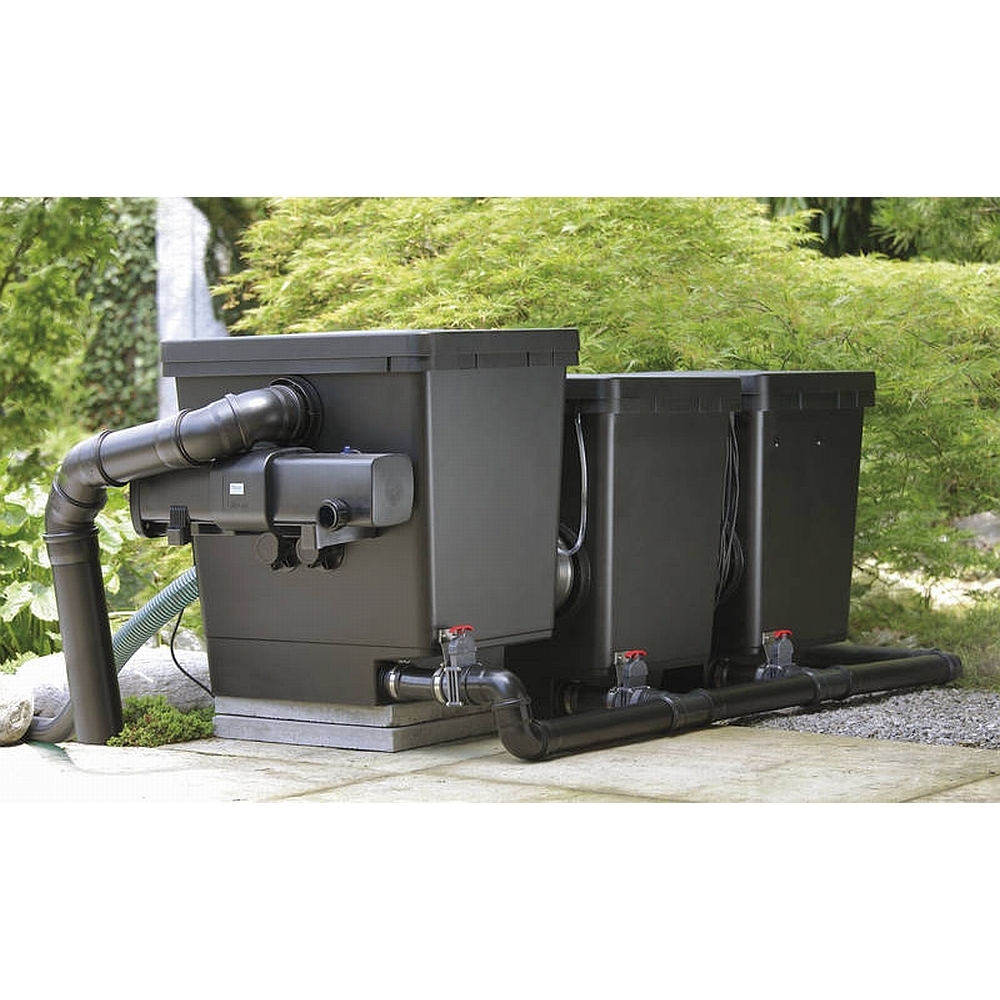

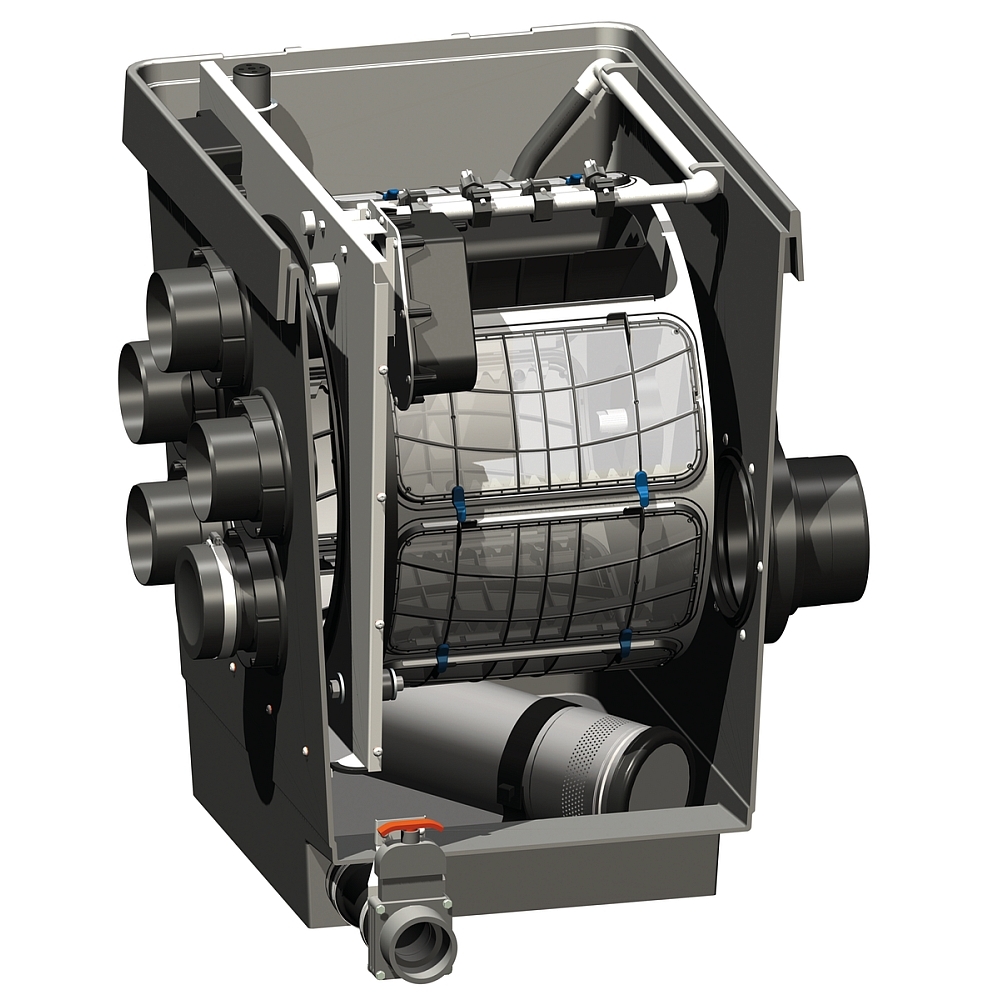

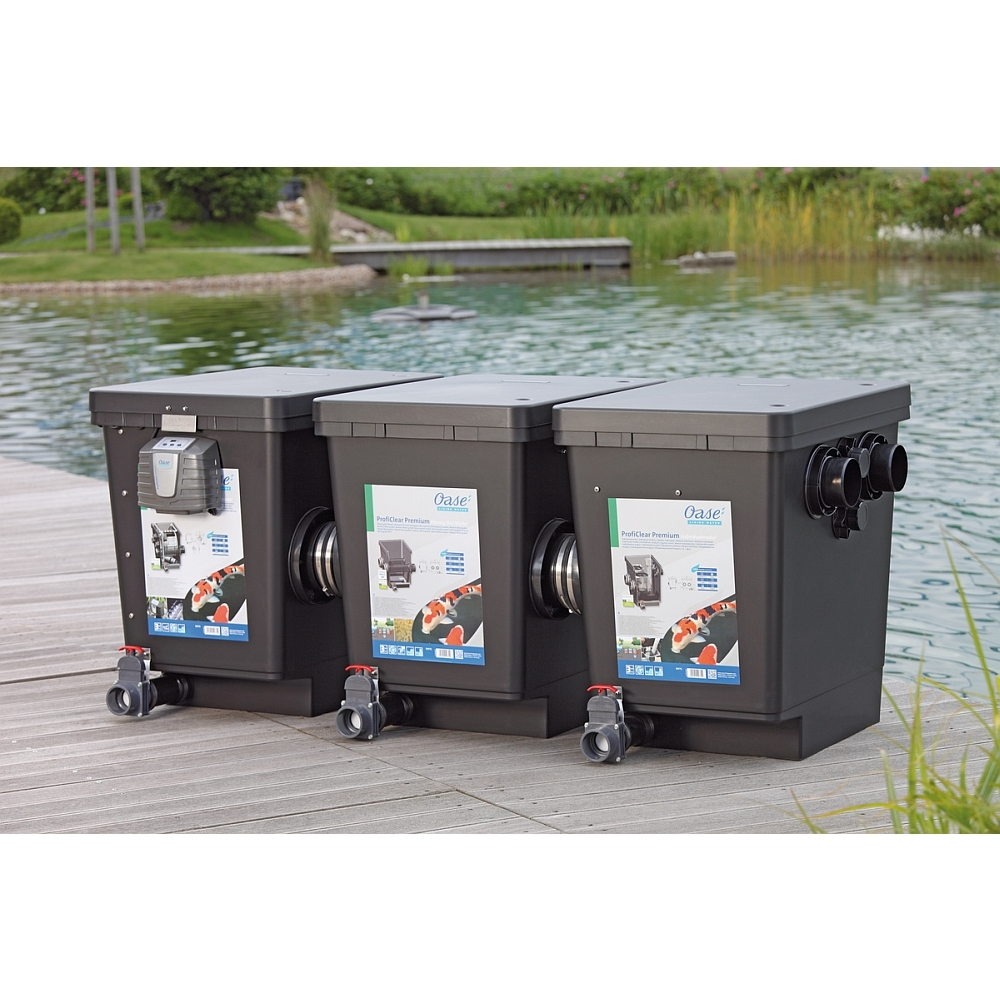

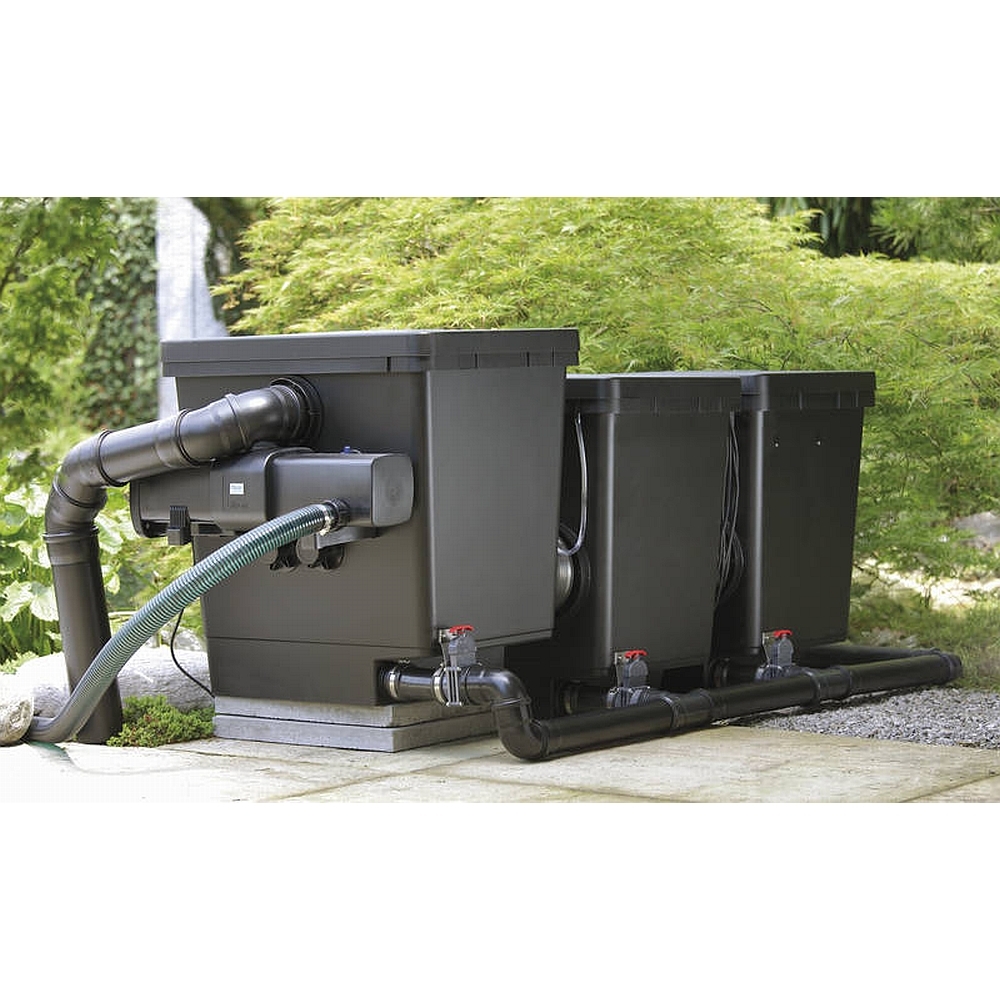

The Oase Profi Clear Premium drum filter can be installed as a modular filter system, allowing it to be completely customised. The sieve element delivers high separation performance through depth filtration of up to 60 μm.

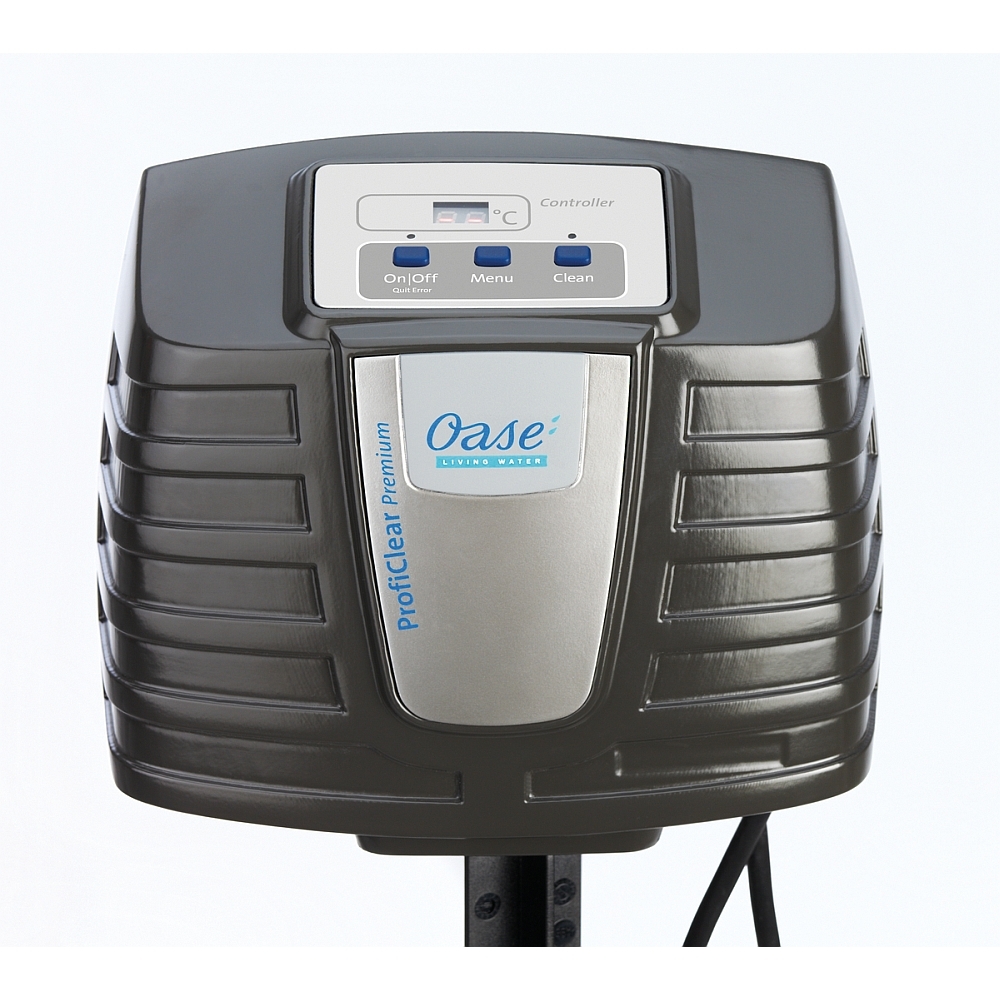

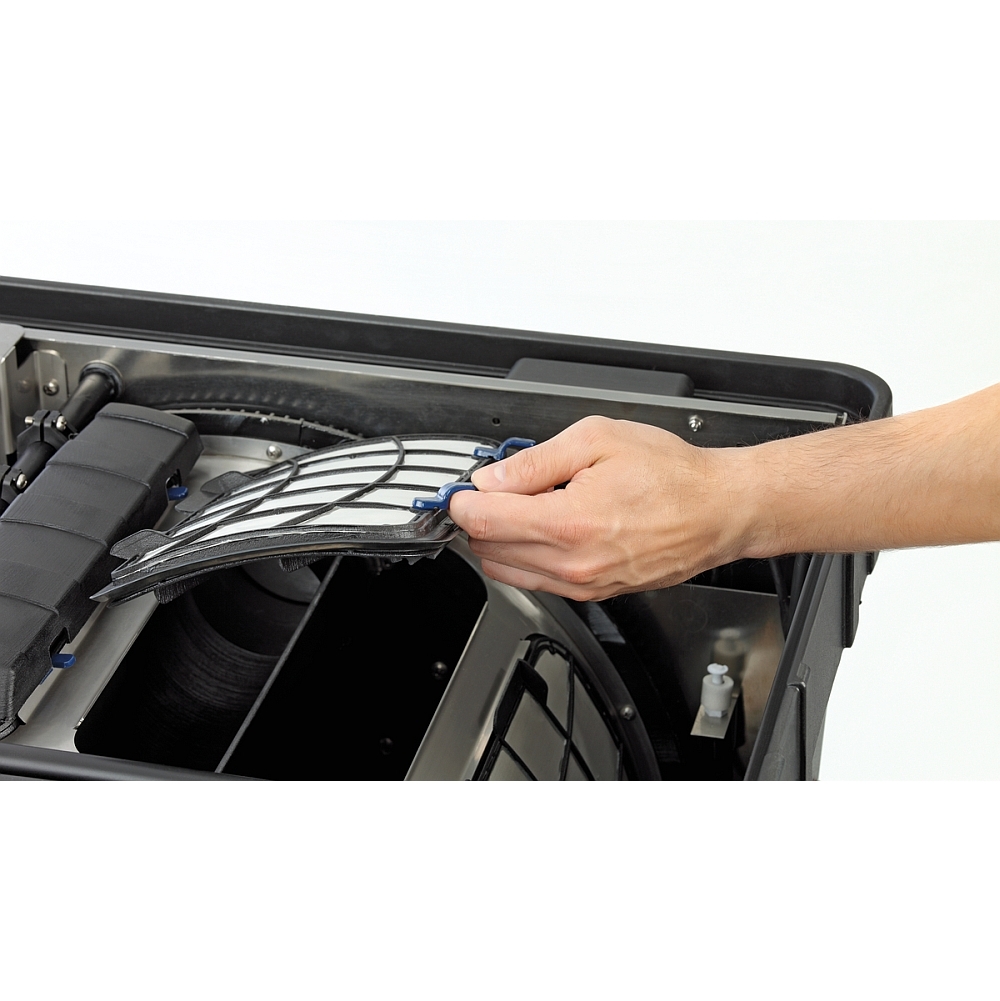

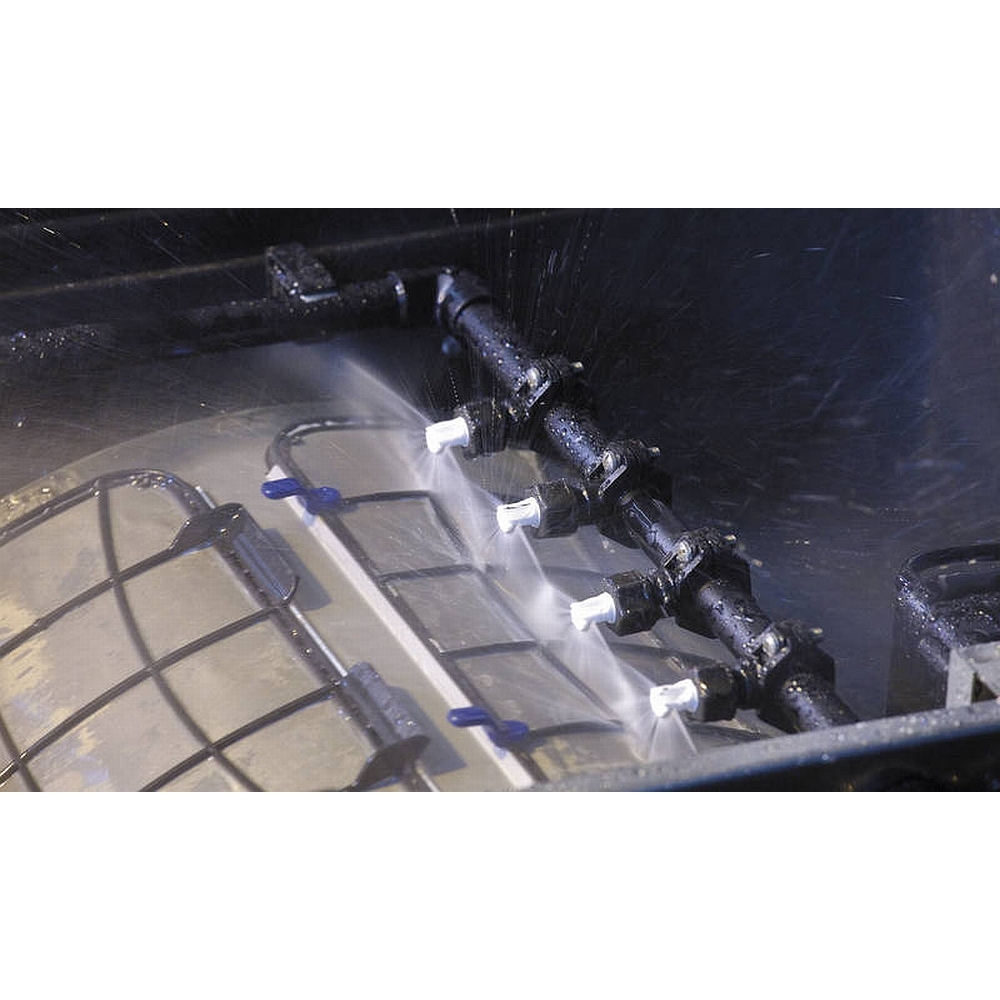

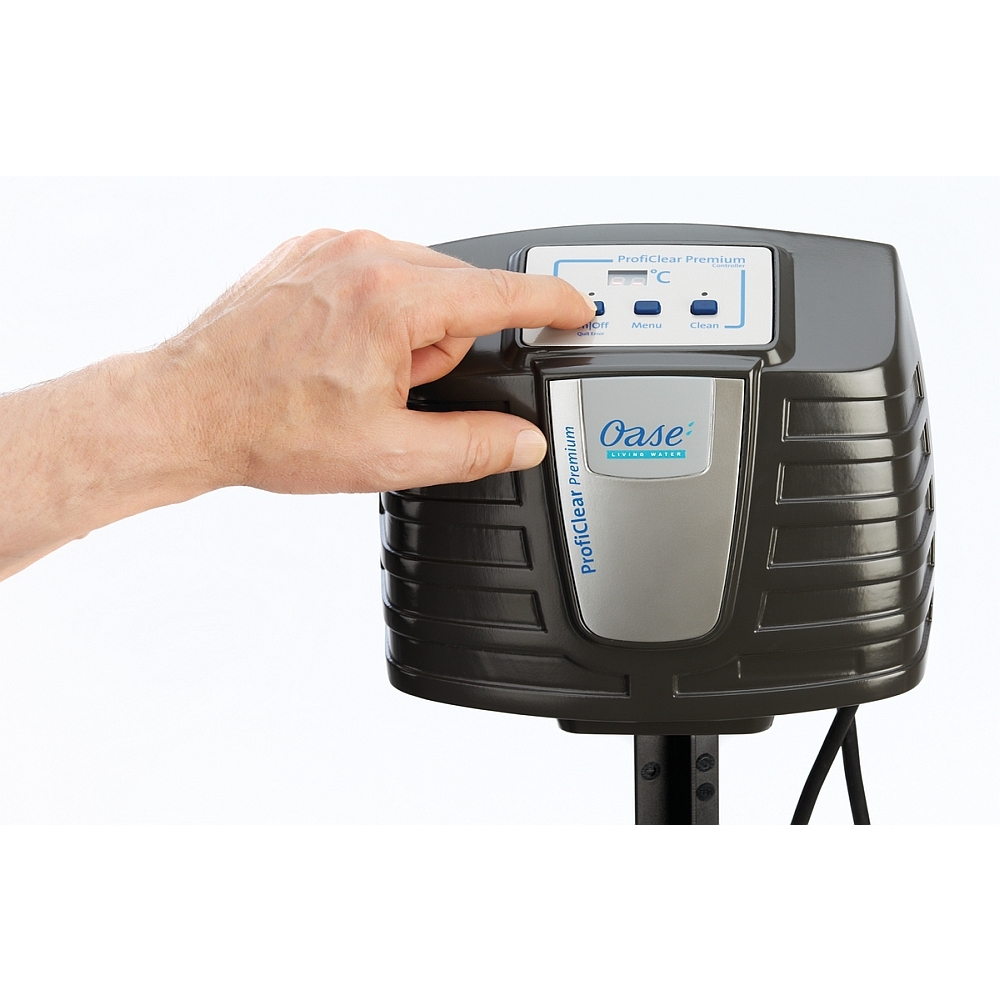

The fully automatic control system takes care of the dirt while you enjoy a clear pond. Interval rinsing and manual rinsing can be programmed as required. The drum filter control system can be used to set the forced rinsing, rinsing duration and additional rinsing. The cleaned pond water is used for the 6 bar flushing. And it's quiet too, thanks to the sturdy housing. The filters can be easily dismantled and taken apart for cleaning purposes. Eight individual sieve elements ensure easy maintenance.

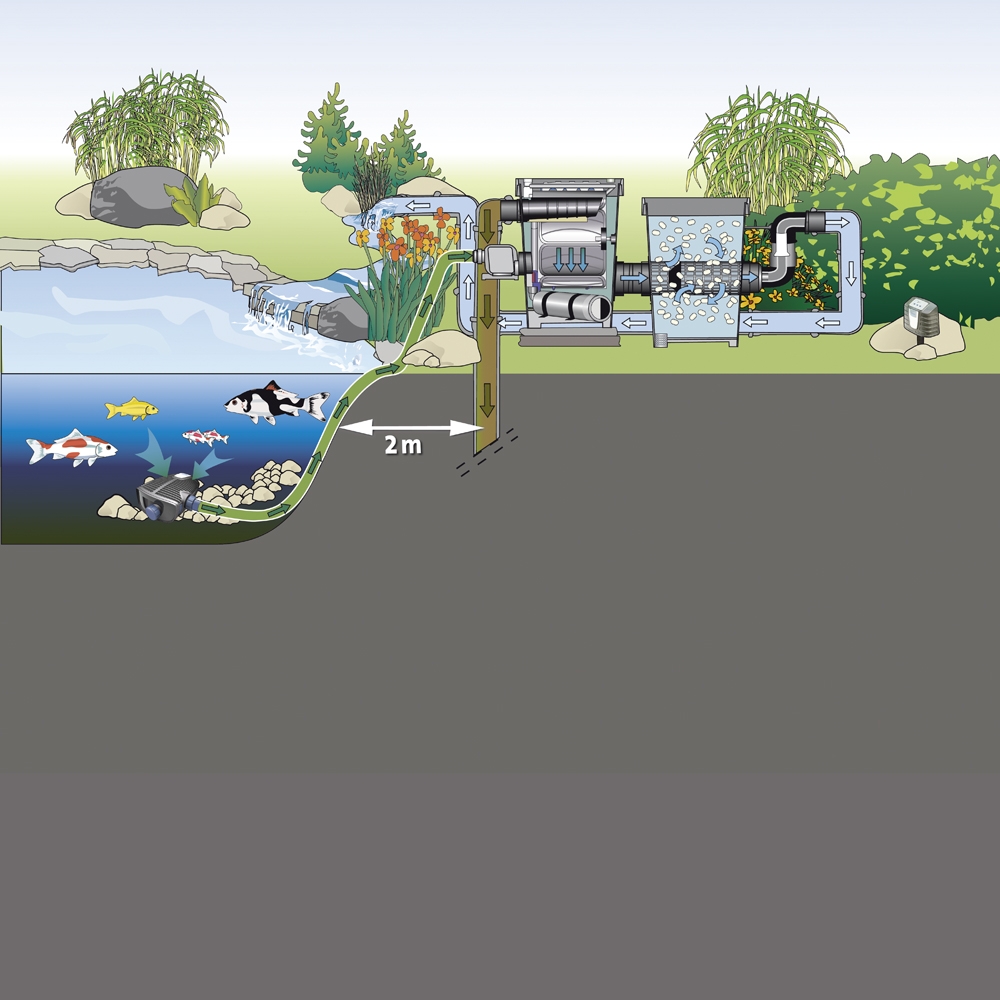

The filters are available in gravity and pumped systems. The lower installation height of the gravity filter compared to other filters allows you to install and operate it when space is limited. The filter can be conveniently controlled via an app by connecting it to an Oase Control System (OC). This means you always have your filter at your fingertips (via the app). You receive push notifications if there is a problem and can deal with it immediately.

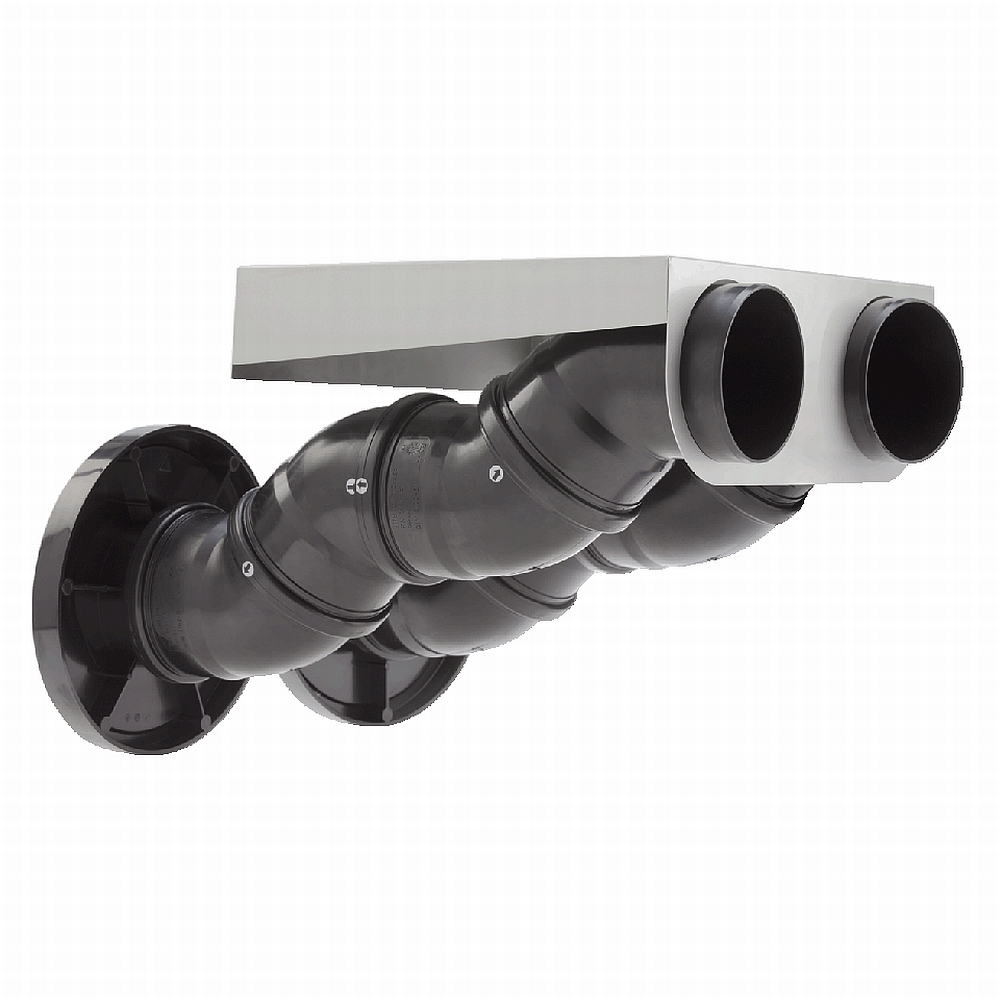

With the optional OASE gooseneck drain set, you can operate the ProfiClear drum filter in a pumped installation even without an individual chamber.
Made in Germany – 2-year warranty (+1 year after registration)
Monday to Friday: 9 a.m. to 5 p.m.
| Dimensions (L x W x H) | mm | 830 x 600 x 820 |
|---|---|---|
| Drum size | mm | 516 x 370 |
| Net weight | kg | 74.00 |
| Warranty (+ extended warranty) | years | 2 + 1 |
| Number of sieve elements | ST | 8 |
| Material | GRP thermoset/stainless steel | |
| Inlets | 2 x 50 mm | |
| Outputs | 2 x 160 mm | |
| Connections Dirt outlet and outlet opening | DN 75, DN 110 | |
| Litres per hour min. | l/h | 10,000 |
| Litres per hour max. | l/h | 2500 |
| Installation height above water level | cm | 40 |
| Type of use | Pump system | |

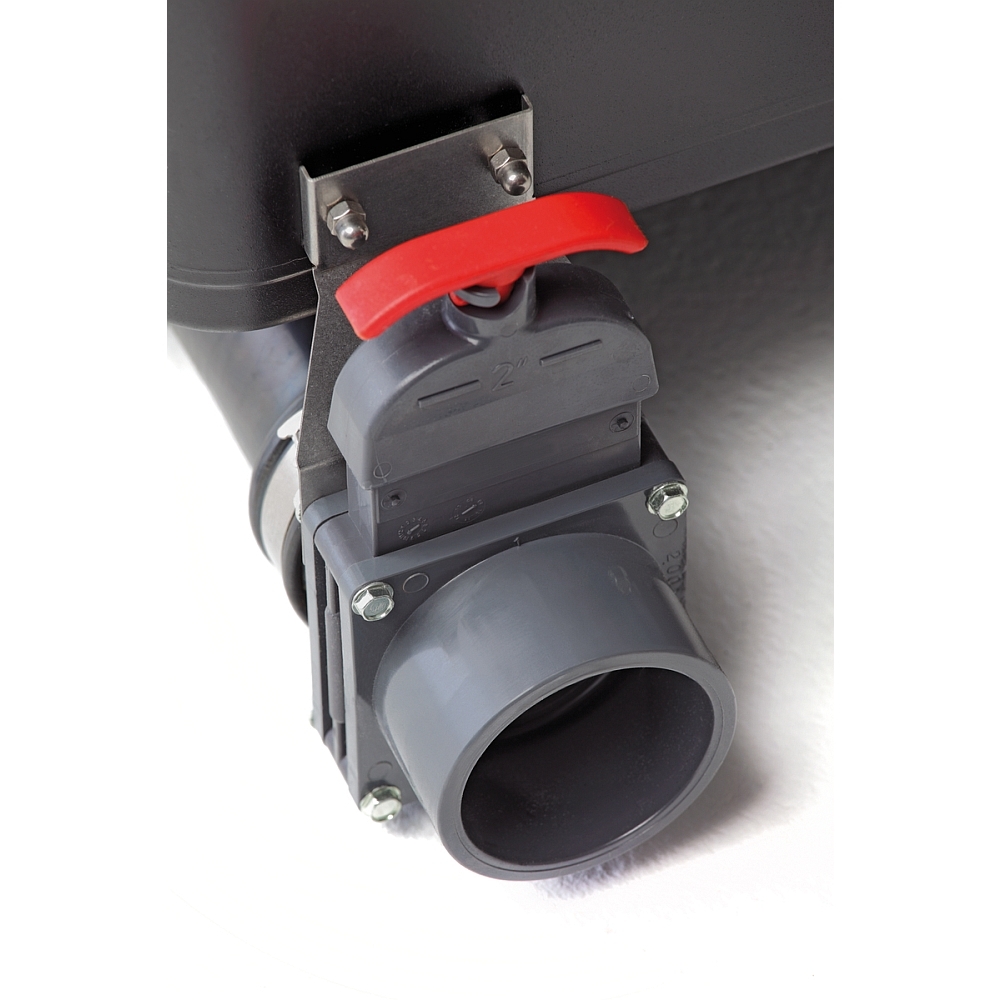

| Other | Dirt drain incl. slide valve | |

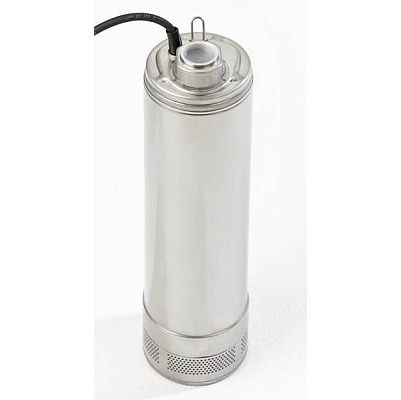

| Flush pump | 6.0 bar from Ebara |
The OASE drum filter can be controlled via smartphone or tablet using an OC controller.
Integrated safety level switch prevents jamming due to dirt particles.
