OASE ProfiClear Premium XL drainage module pumped
Available immediately, delivery time: 3-6 Werktage**

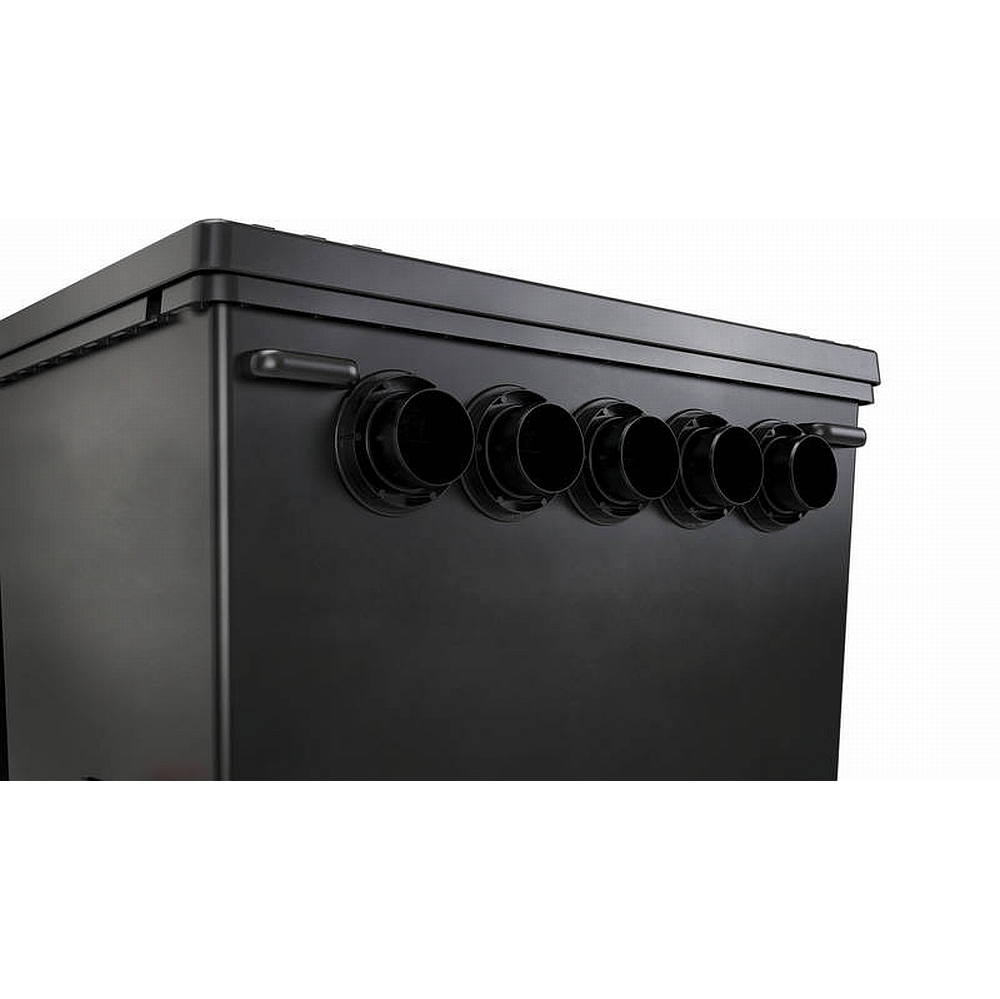

The drainage module for the pumped Oase drum filter, with its 5 x DN-110 mm outlets, ensures proper drainage at the end of the filter system.
The drainage module for the pumped Oase drum filter ensures proper drainage at the end of the filter with its 5 x DN-110 mm outlets.
With a built-in fixed bed filter as additional biological filtration, the module provides the finishing touch and optimum water clarity.
An integrated drain at the bottom, including a slide valve, is used to dispose of settled dirt.
Made in Germany – 2-year warranty (+1 year after registration)
Monday to Friday: 9 a.m. to 5 p.m.
| Dimensions (L x W x H) | mm | 1330 x 875 x 820 |
|---|---|---|
| Net weight | kg | 101.60 |
| Warranty (+ extended warranty) | years | 2 + 1 |
| Material | GRP thermoset/stainless steel | |
| Number of inputs | ST | 2 |
| Input connections | mm | 180 |
| Number of outputs | ST | 5 |
| Output connections | DN 110 | |
| Connections for dirt outlet | DN 75 | |
| Litres per hour min. | l/h | 2500 |
| Litres per hour max. | l/h | 50,000 |
| Connection to | AquaOxy 2000, ProfiClear Premium TF-XL pumped OC, ProfiClear Premium XL Moving Bed | |
| Installation height above water level | cm | 32 |
| Type of use | Pump system | |
| Other | Ventilation pre-installed |
