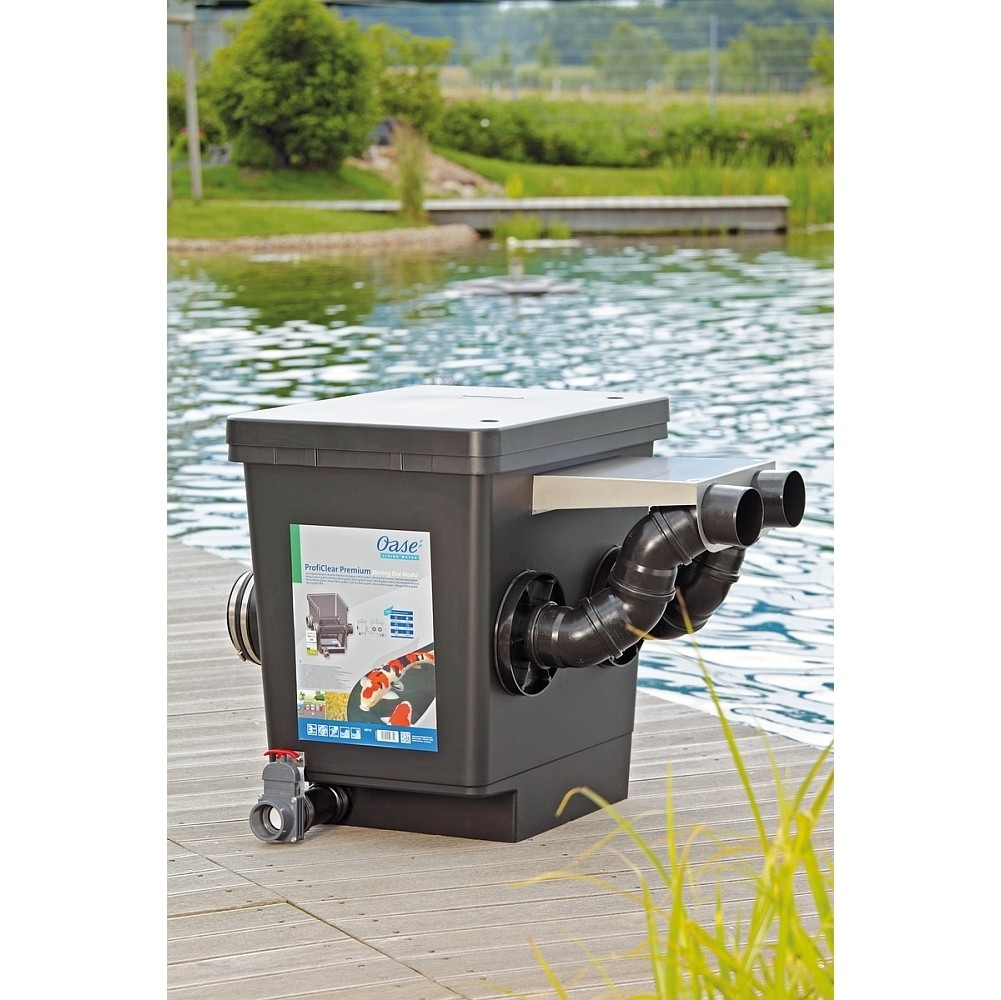

OASE ProfiClear Premium Moving Bed Module
Available immediately, delivery time: 3-6 Werktage**
The Moving Bed Module from Oase is ideal for biological filtration after the drum filter.
The module is designed to fit the Oase drum filter and can be easily connected to the filter.
The ProfiClear Hel-X module is used for the biological degradation of nutrients and pollutants.

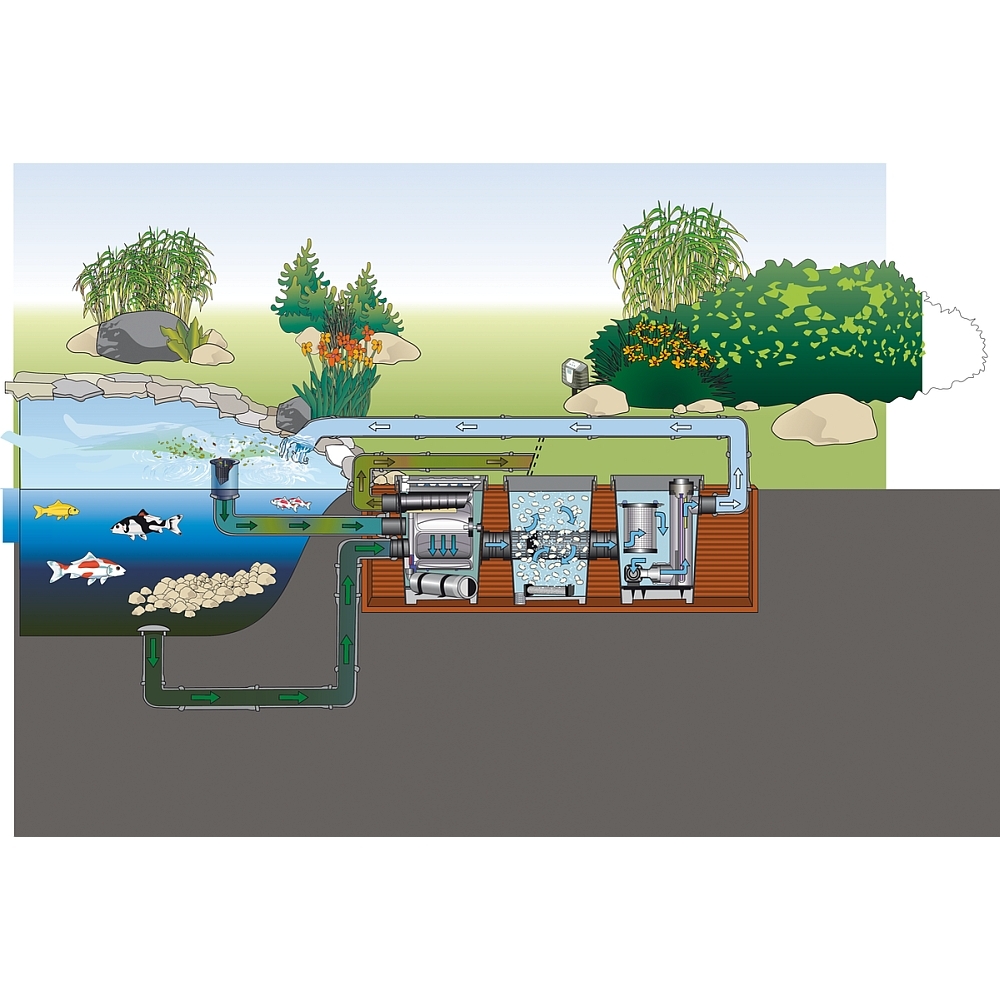

By connecting the Hel-X modules downstream of your drum filter, you can remove fish toxins from the water.

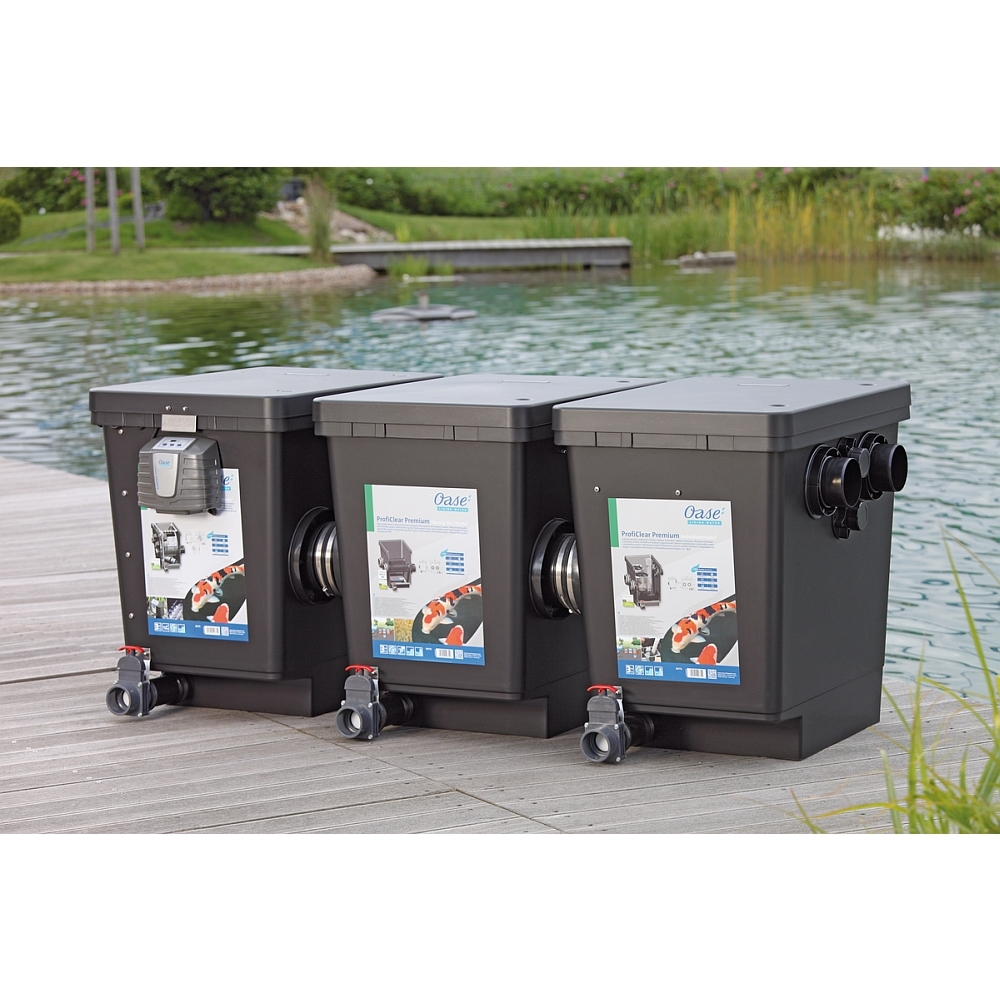

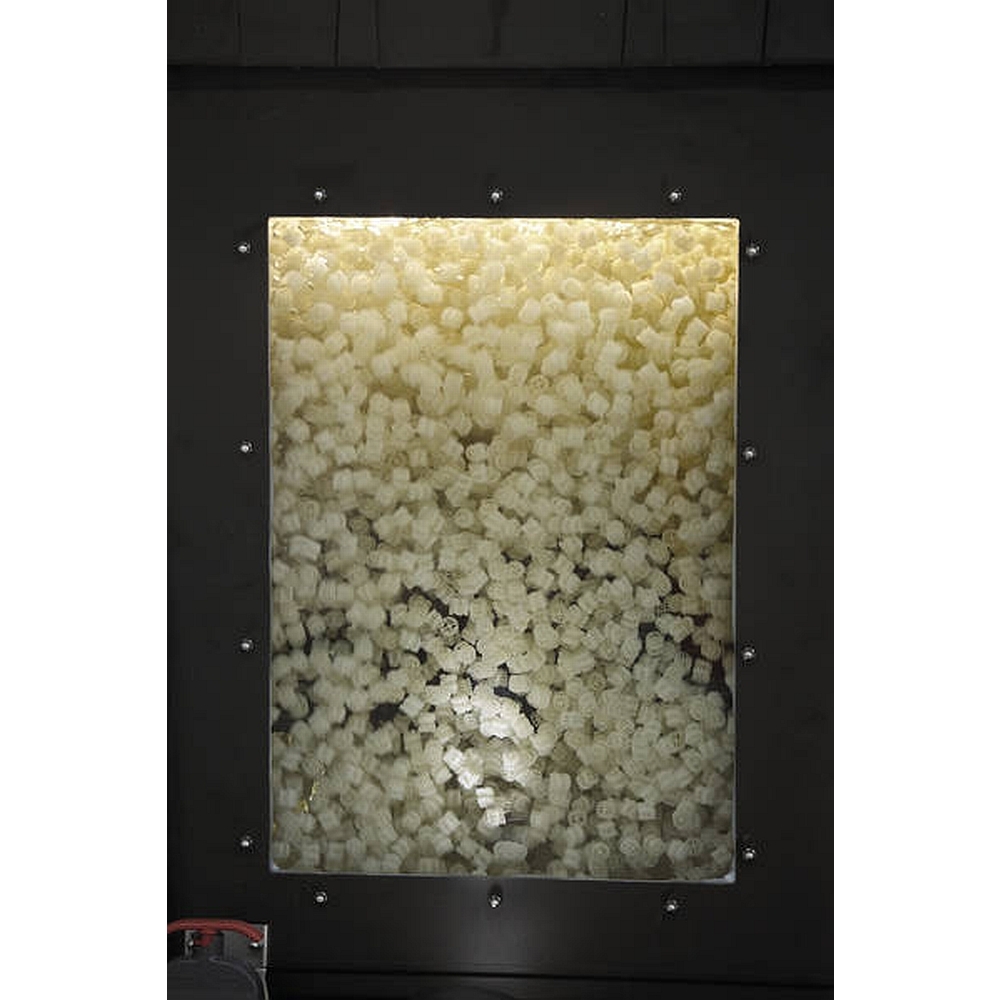

The Oase modules are coordinated with each other and can be easily set up in series. The innovative bypass technology ensures optimal movement of the Hel-X.

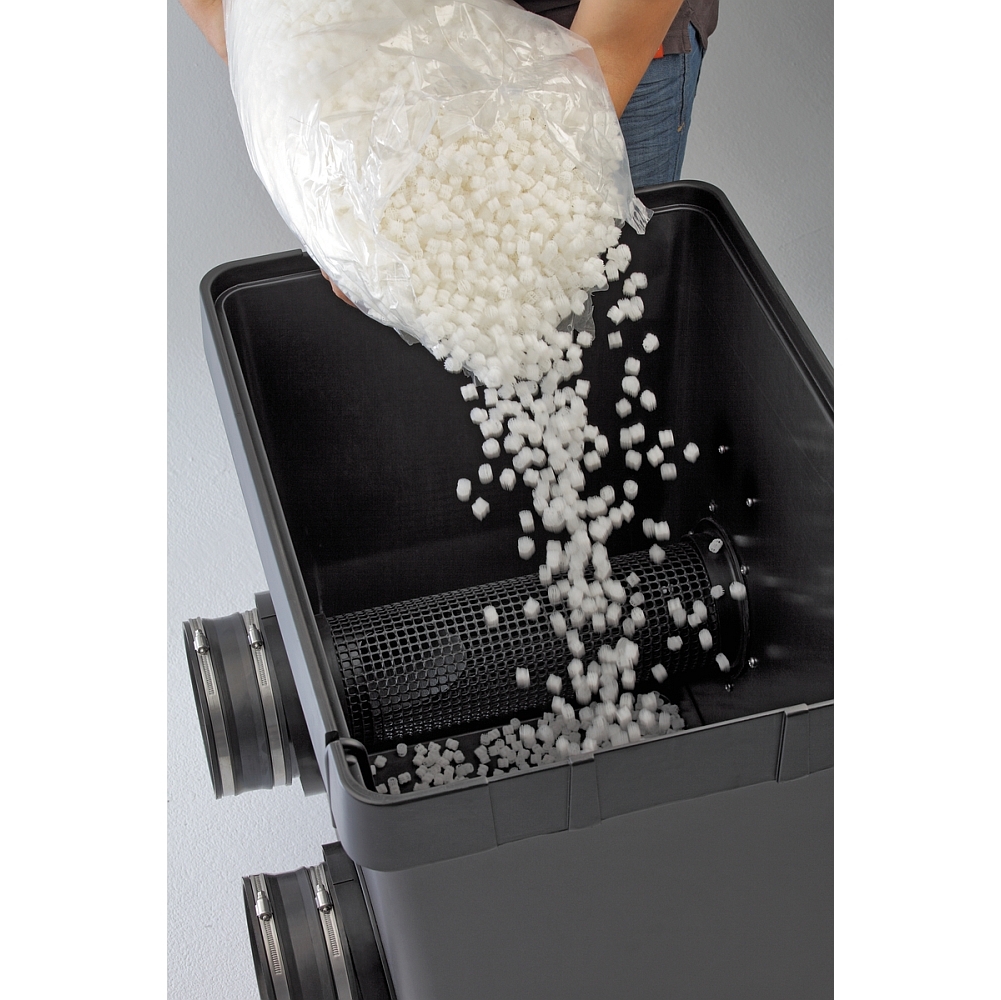

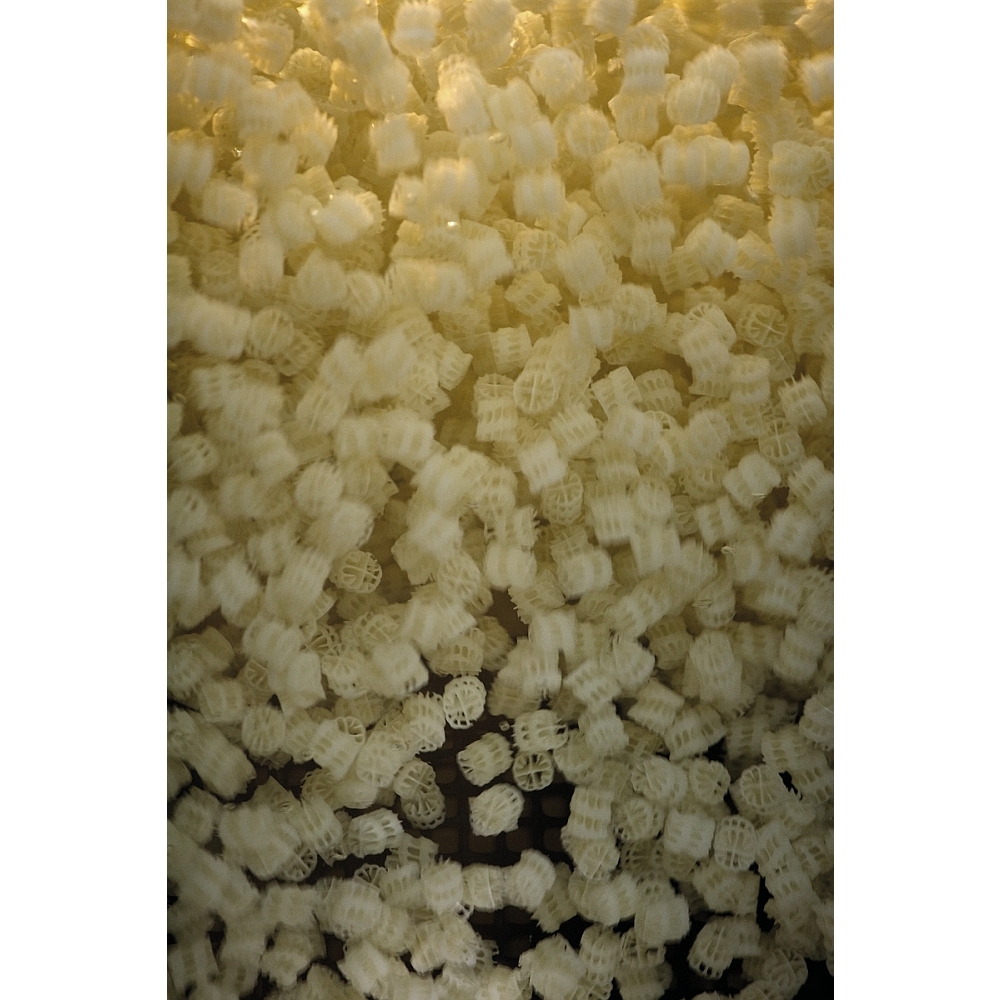

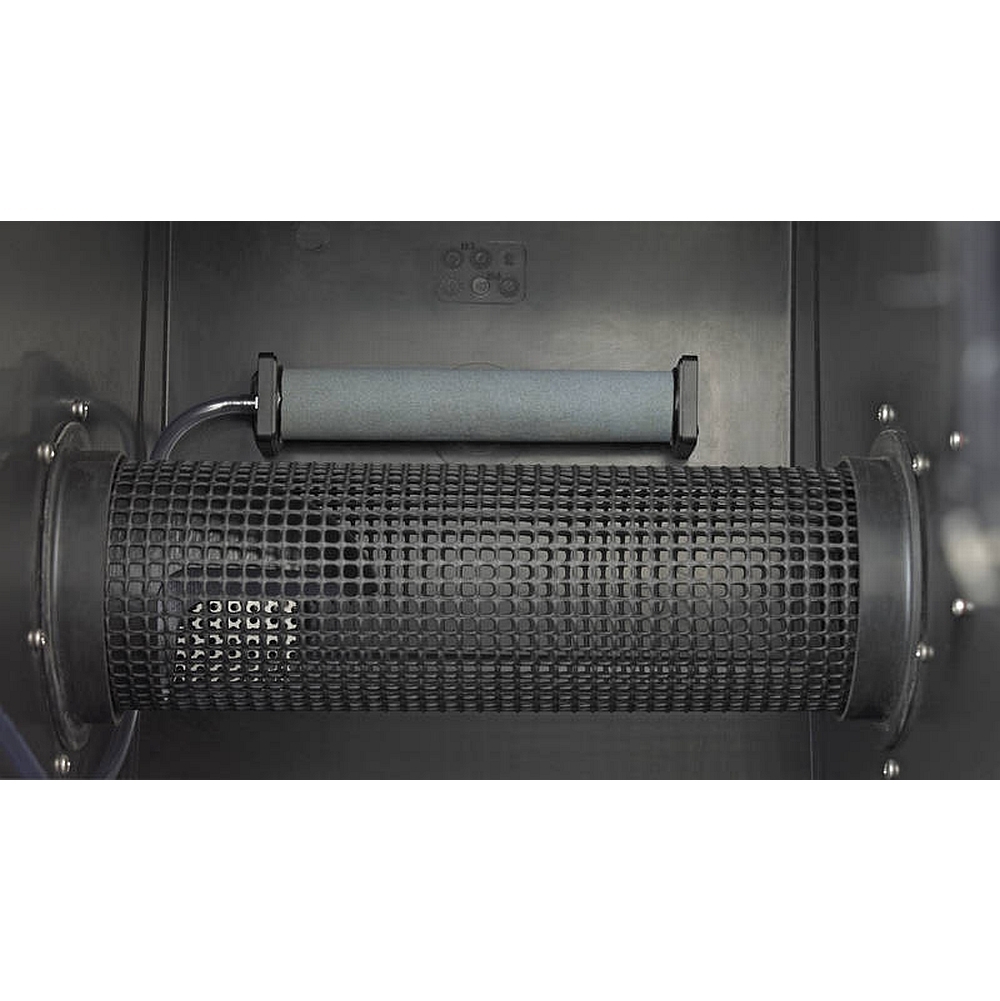

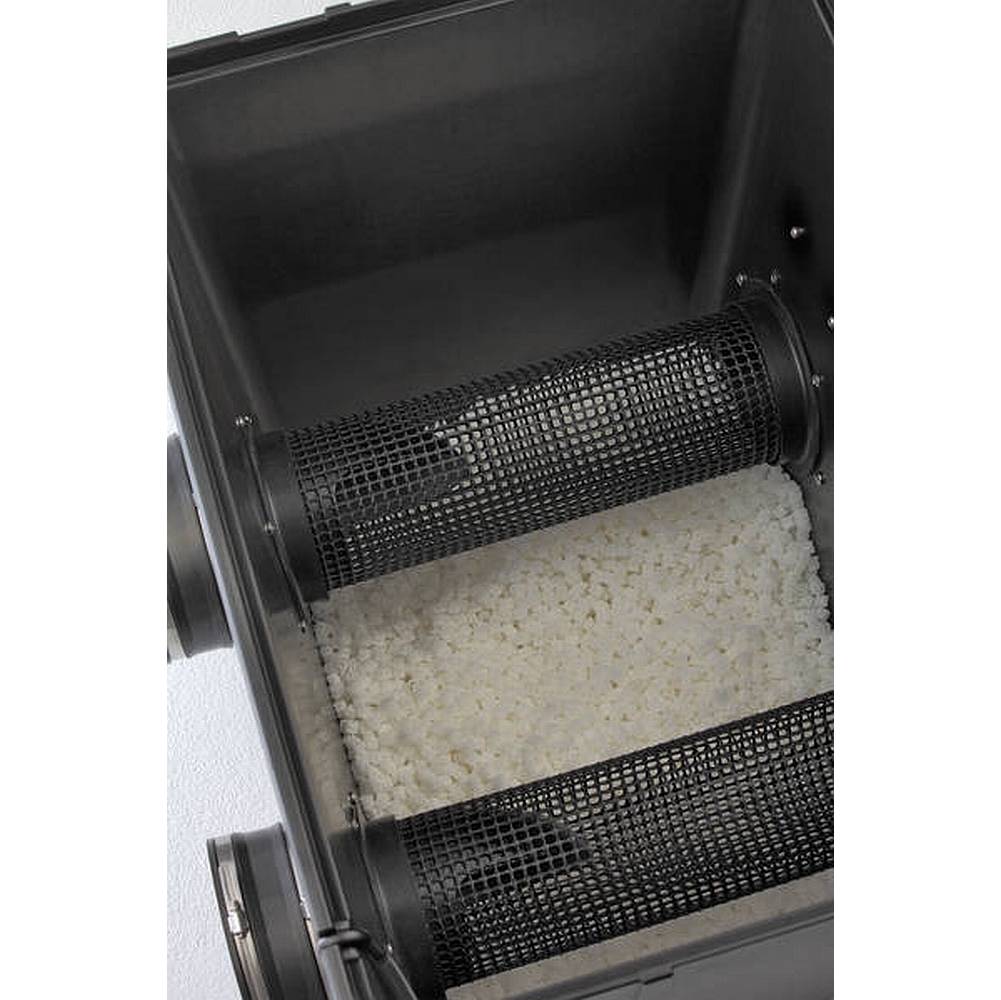

The Hel-X 13 KLL (50L included) is aerated via the pre-installed aerator rod, which can be connected to the air pump using a 9 mm air hose.

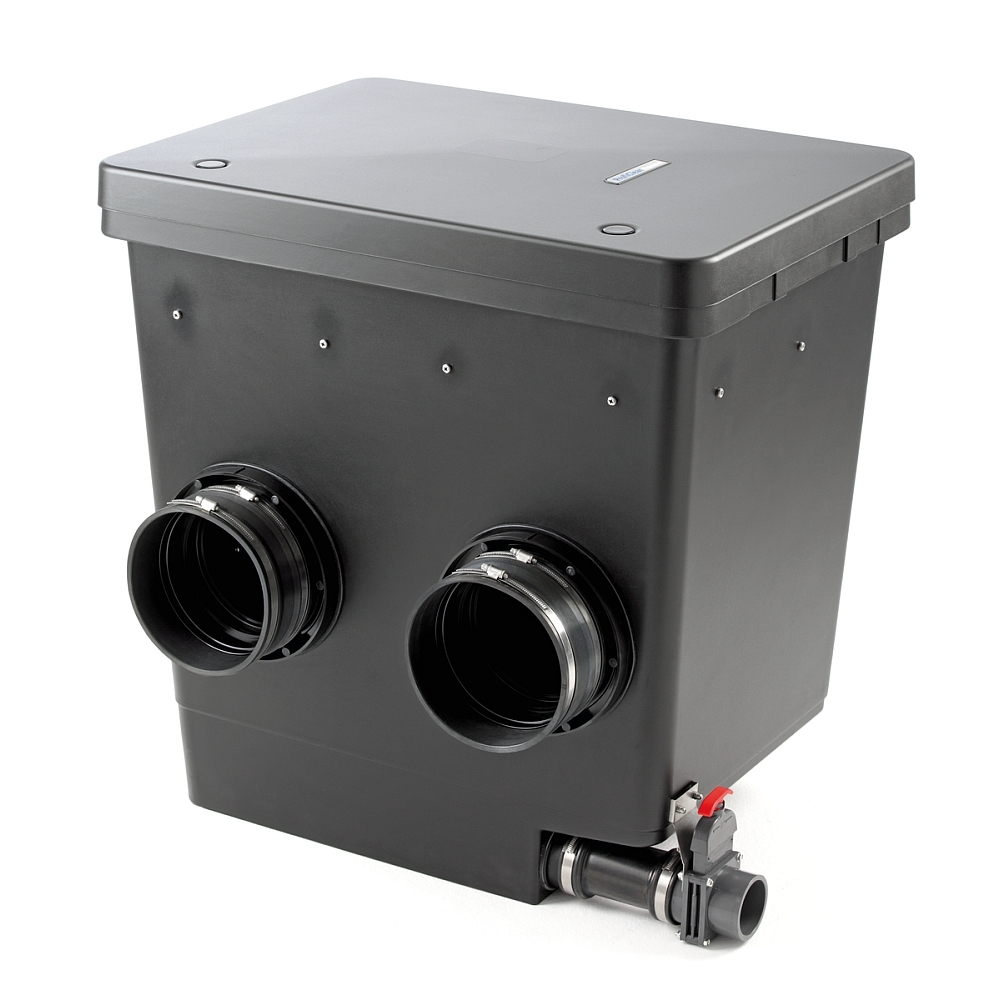

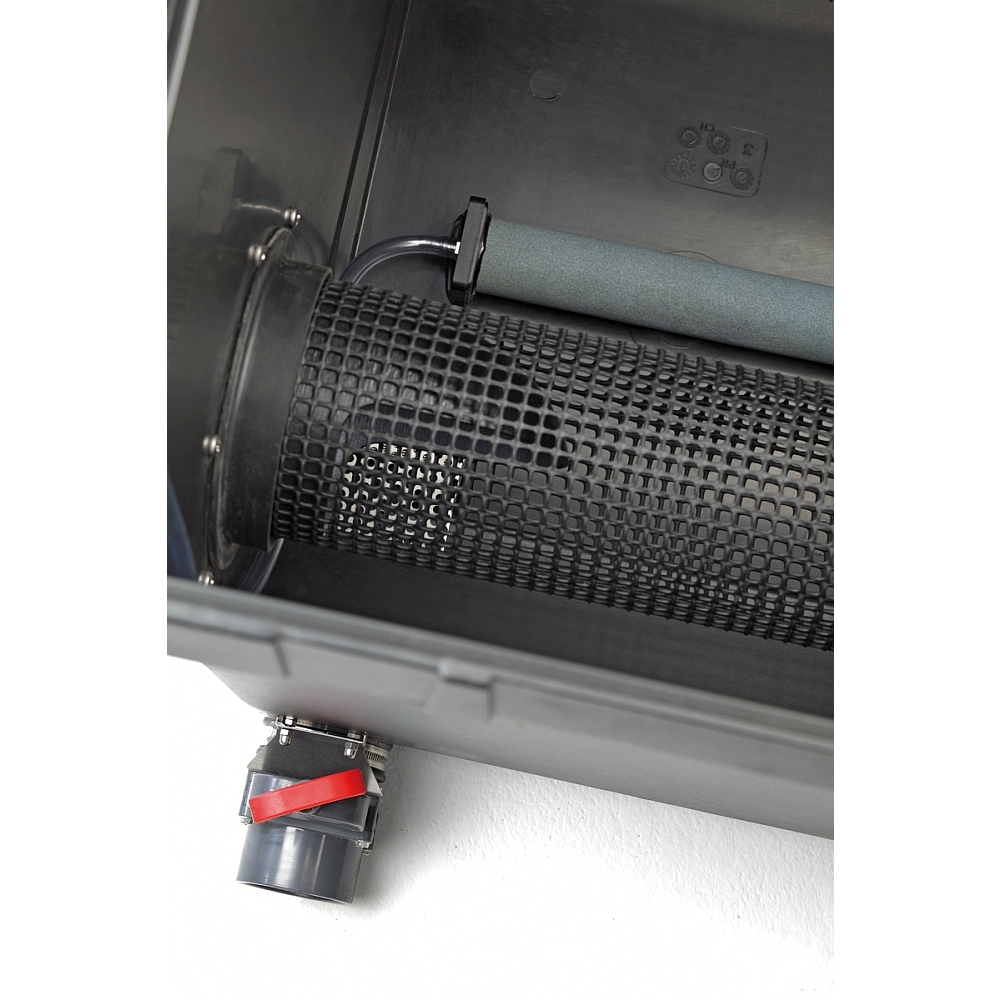

An integrated drain at the bottom, including a slide valve, is used to dispose of settled dirt.

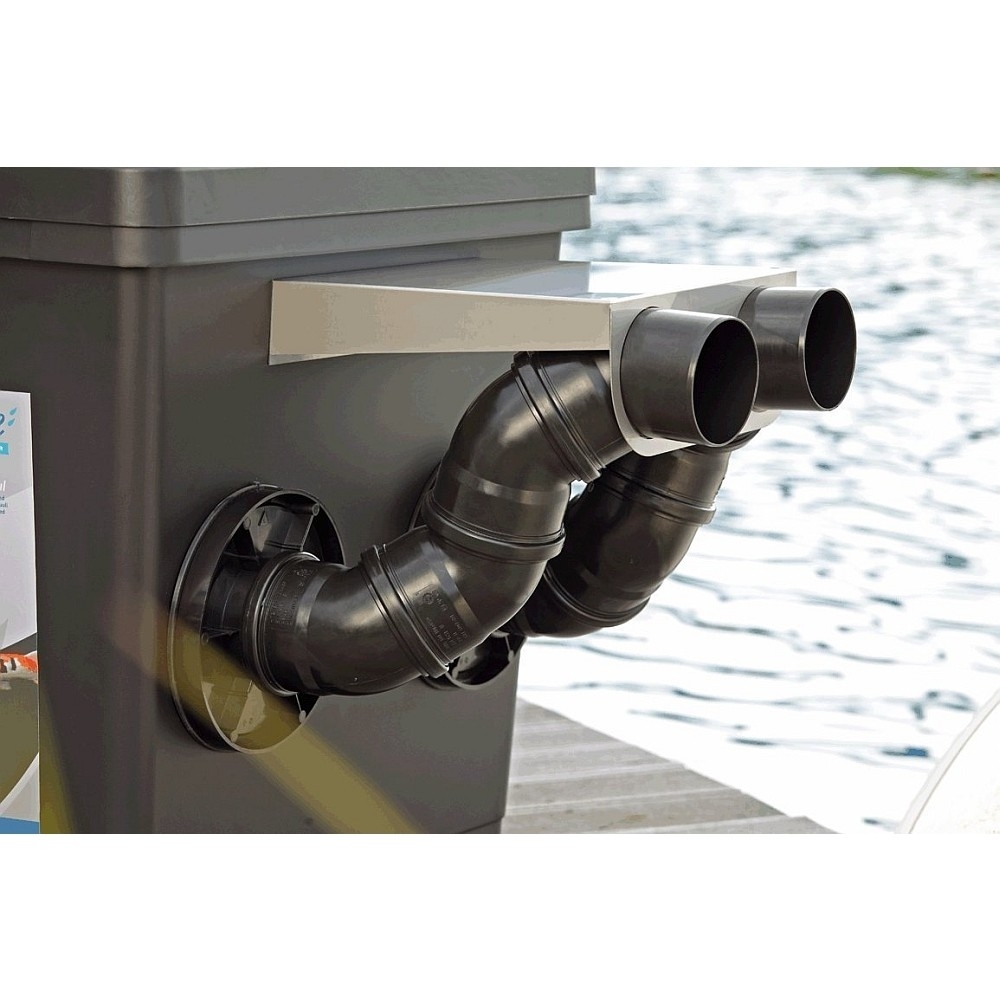

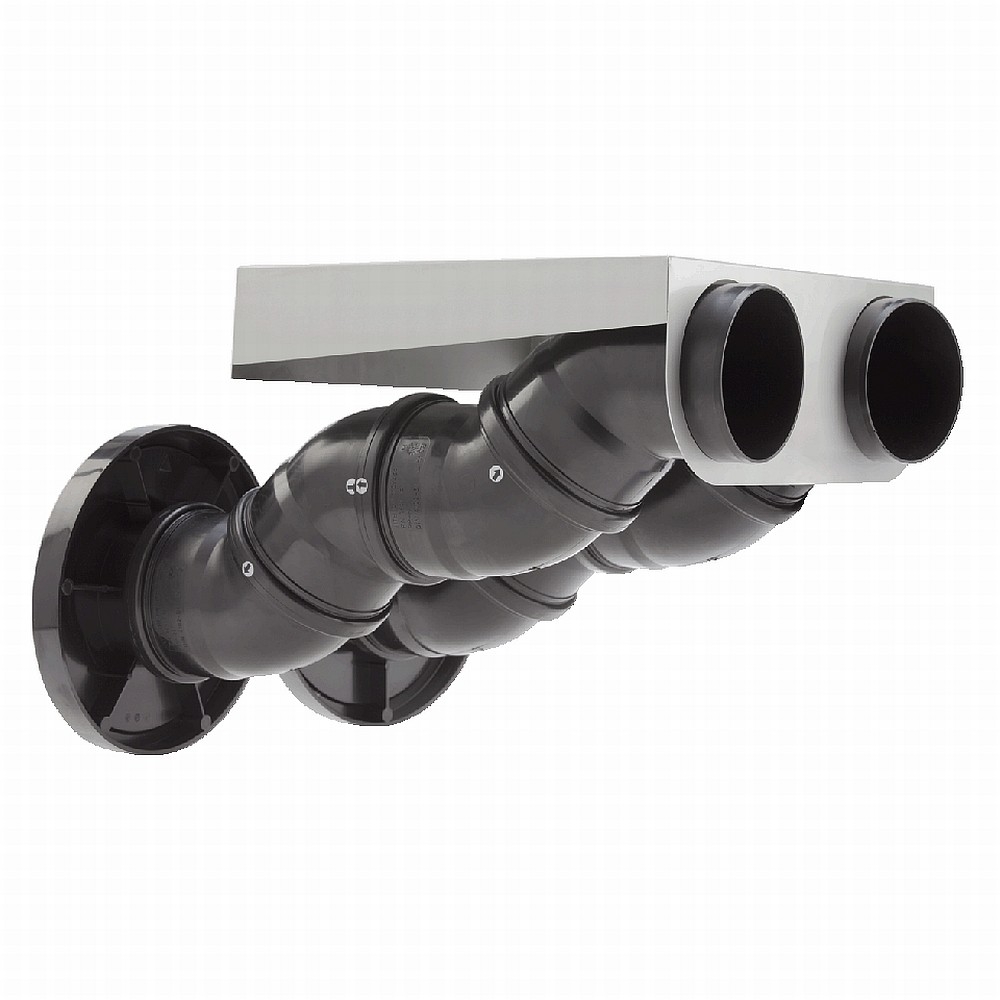

When operating the OASE Moving Bed Module without the OASE Individual Chamber, the gooseneck drain set should be added to ensure the correct water level in the container.
Made in Germany – 2-year warranty (+1 year after registration)
Monday to Friday: 9 a.m. to 5 p.m.
| Dimensions (L x W x H) | mm | 830 x 600 x 820 |
|---|---|---|
| Net weight | kg | 44.00 |
| Warranty (+ extended warranty) | years | 2 + 1 |
| Filter capacity: Pond volume | 15 m³ (per module) | |
| Material | GRP thermoset | |
| Number of inlets | 2 x 180 mm | |
| Number of outlets | 2 x 160 mm | |
| Connections Dirt outlet | 75 mm incl. slide valve | |
| Litres per hour min. | 10,000 l/h | |
| Litres per hour max. | 33,000 l/h | |
| Air connection at | 9 mm | |
| Installation height above water level | 11.5 cm | |

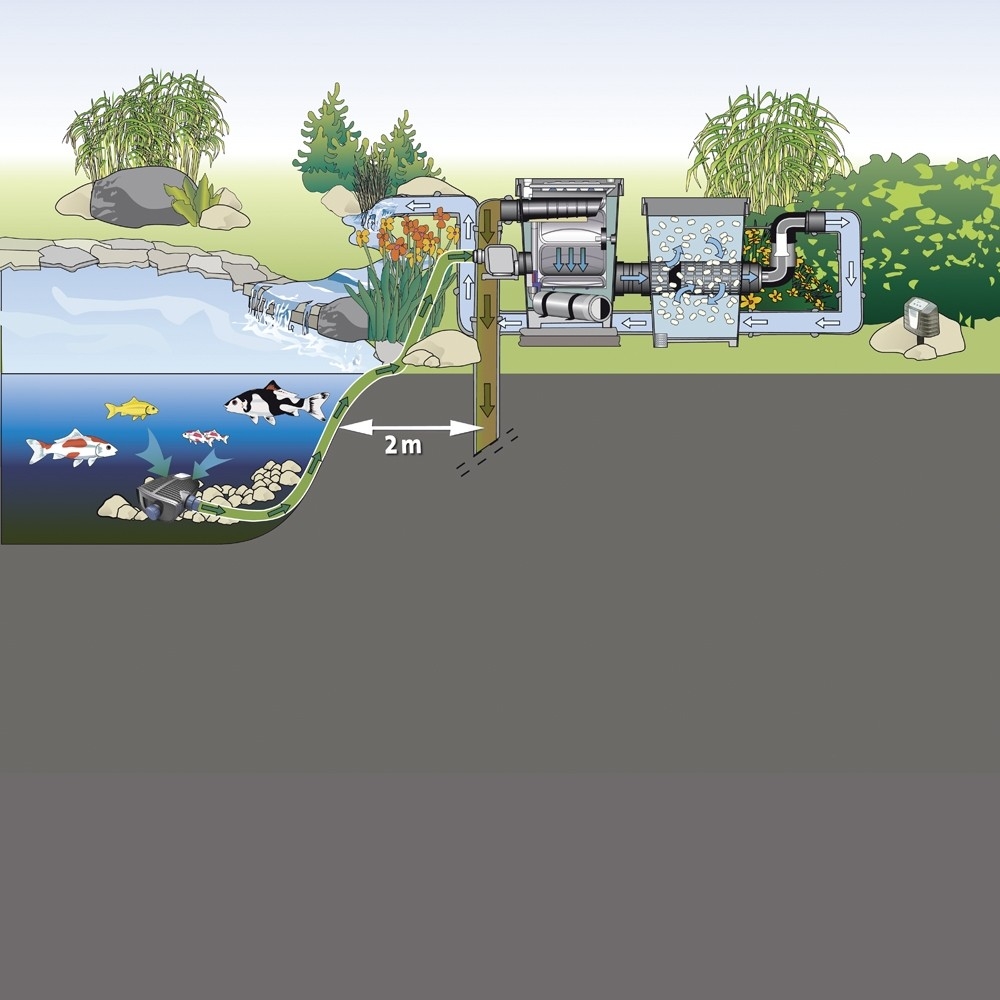

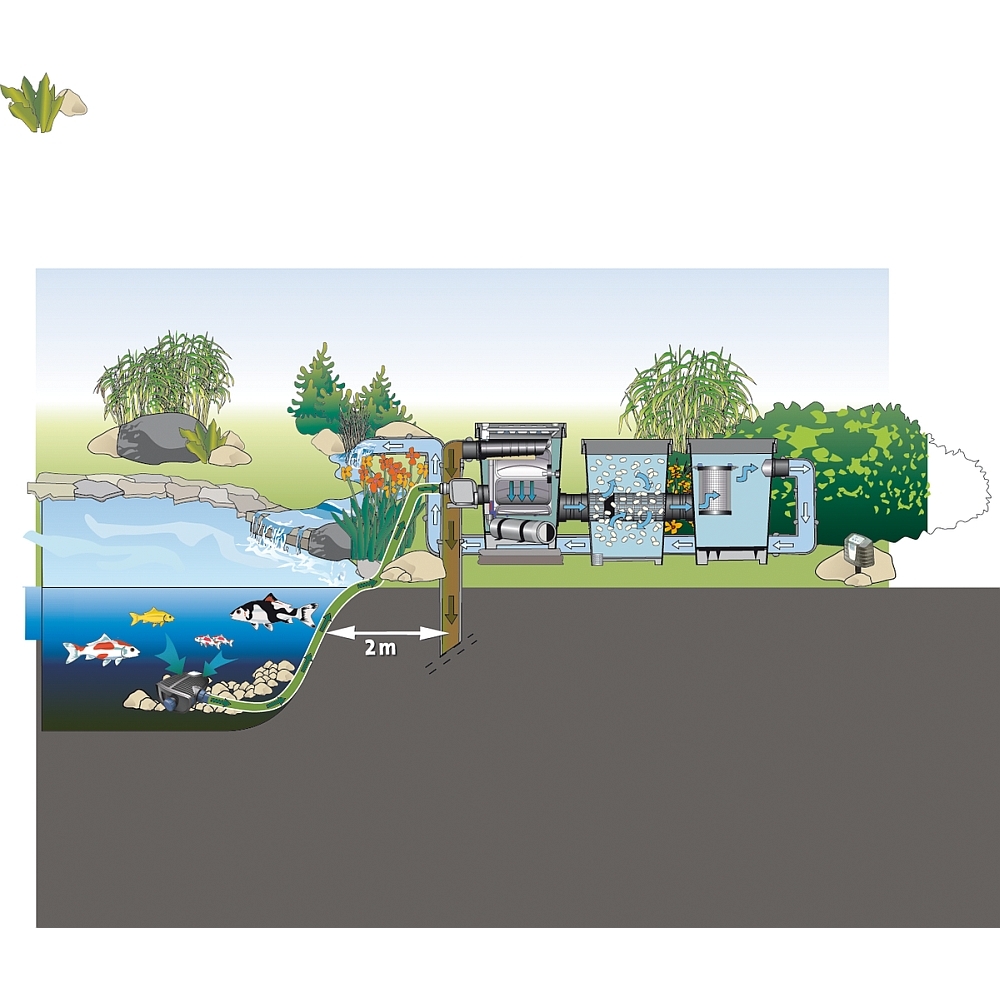

| Type of use | Gravity, pump system | |
| Other |
Pre-installed ventilation Includes 50 l Hel-X 13 KLL Biomedium (expandable to 75 l total) |
