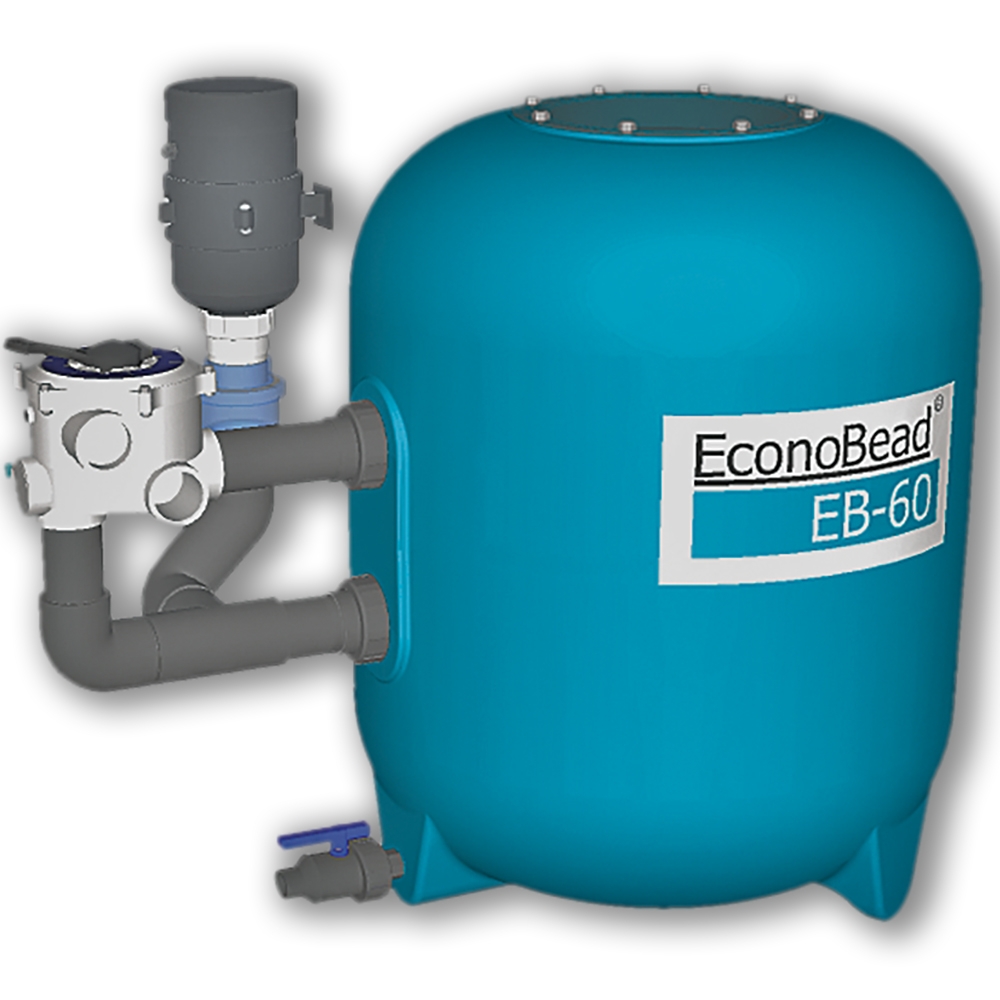

EconoBead Filter 60
Available immediately, delivery time: 1-3 days**
The affordable alternative to the Ultrabead filter.
This filter can only be used with a pre-filter and is sufficient for a pond size of 35m³ with a high fish stock.
Delivery includes bypass and coupling.
- Description
- Instructions for use
- User manual
- Technical specifications
- Installation
- Feeding advice
- Product video
The EconoBead filter series is the affordable alternative to Ultrabead and is preferably used in indoor tanks.
The advantages of this filter are:
- Thanks to its closed design, the filter can be installed both above and below pond level, made possible by the 6-way valve.
- The filter comes with a blower as standard, which produces a huge amount of air to ensure that the beads are cleaned optimally.
- With the 6-way valve, you can filter, backwash, bypass (past the filter) and pump out the pond.
- You can install the filter in no time at all.
- The beads have a huge surface area of 1600 m²/m³.
- Delivery includes beads and blower. Important: Bypass included from model 60 onwards!
- Material: Strong PE housing, max. operating pressure 1.2 bar
- The optional standard bypass ensures lower pressure loss and optimum flow (included from model 60 onwards)
- You should protect the blower from moisture with the optional ball valve. This way, you can be on the safe side.
The filter should be operated with a pressure pump.
If you are unsure about the pump, please contact us.
Monday to Friday: 9 a.m. to 5 p.m.

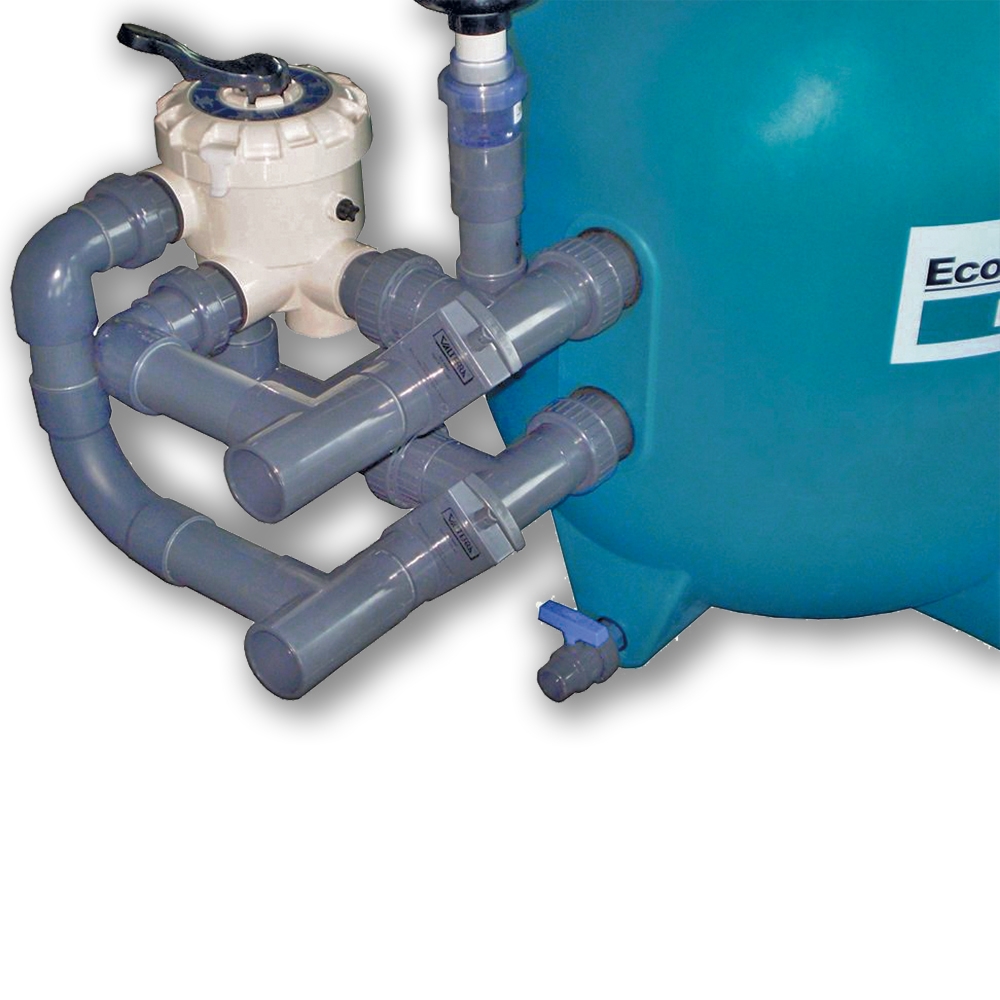

The manufacturer offers a bypass for all EconoBead filters. This is included in models 60 and above. This enables the use of energy-saving pumps. The 6-way valve is bypassed during filtration so that the water flows directly into and out of the filter. During flushing, the gate valves are closed and the water flows through the 6-way valve. The bypass system is very easy to install on all bead filters thanks to its threaded couplings.
The inlet and outlet are designed for 50 mm on the small EB40 and EB50 models and 63 mm on the EB60, EB100 and EB140 models.
The UVC device must be installed after the filter.
Gravity installation is only possible with a slotted screen in front of it.
| Model |
Filter size (Ø x H) mm |
Pond size m³ with high fish stock |
Bead content kg |
Water flow rate pumped l/h | Max. fish stock kg at 1% feed/day | Connection |
| EconoBead 40 | 40 x 68 | 10,000 | 22.5 | 15,000 | 35 kg | 50 mm (1 1/2" without bypass) |
| EconoBead 50 | 50 x 75 | 20,000 | 40 | 15,000 | 50 kg | 50 mm (1 1/2" without bypass) |
| EconoBead 60 | 60 x 85 | 35,000 | 65 | 25,000 | 80 kg | 63 mm (2" incl. bypass) |
| EconoBead 100 | 75 x 113 | 60,000 | 100 | 25,000 | 135 kg | 63 mm (2" incl. bypass) |
| EconoBead 140 | 90 x 126 | 100,000 | 165 | 25,000 | 200 kg | 63 mm (2" incl. bypass) |
From now on, delivery includes a coupling below the non-return valve.
