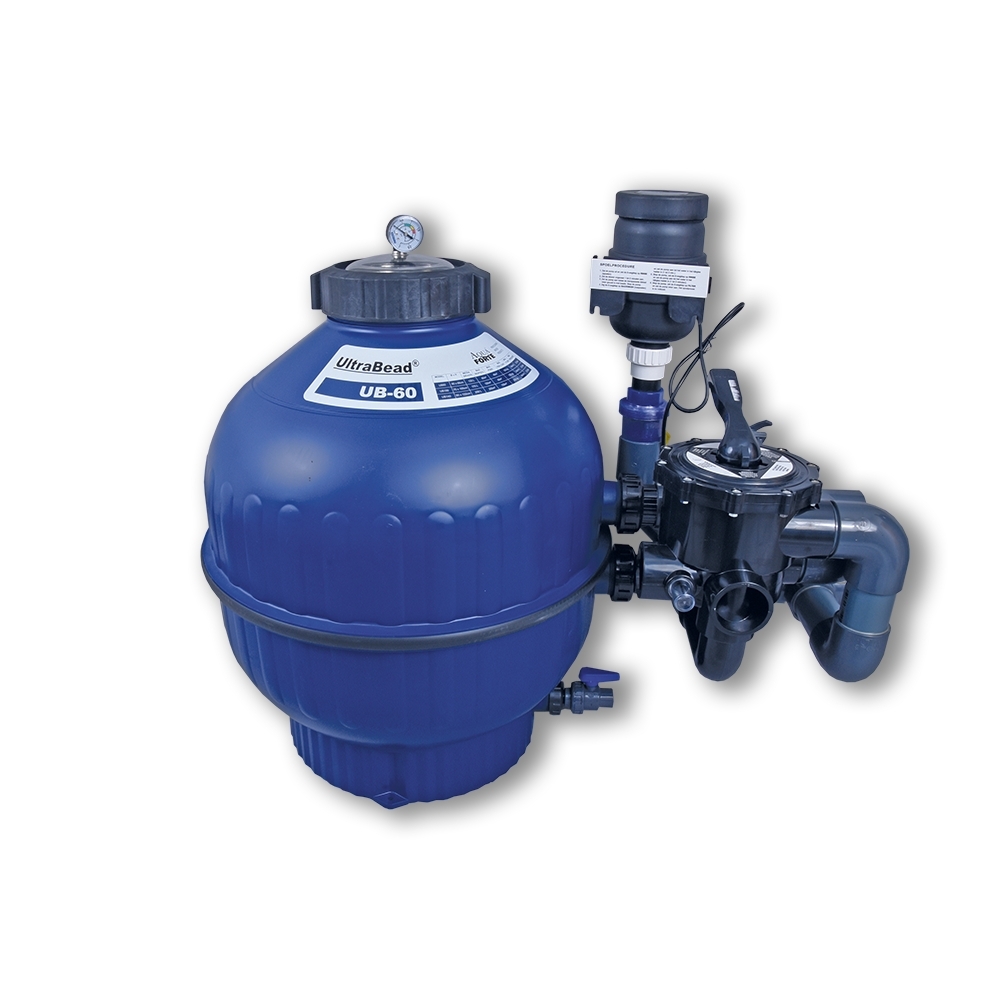

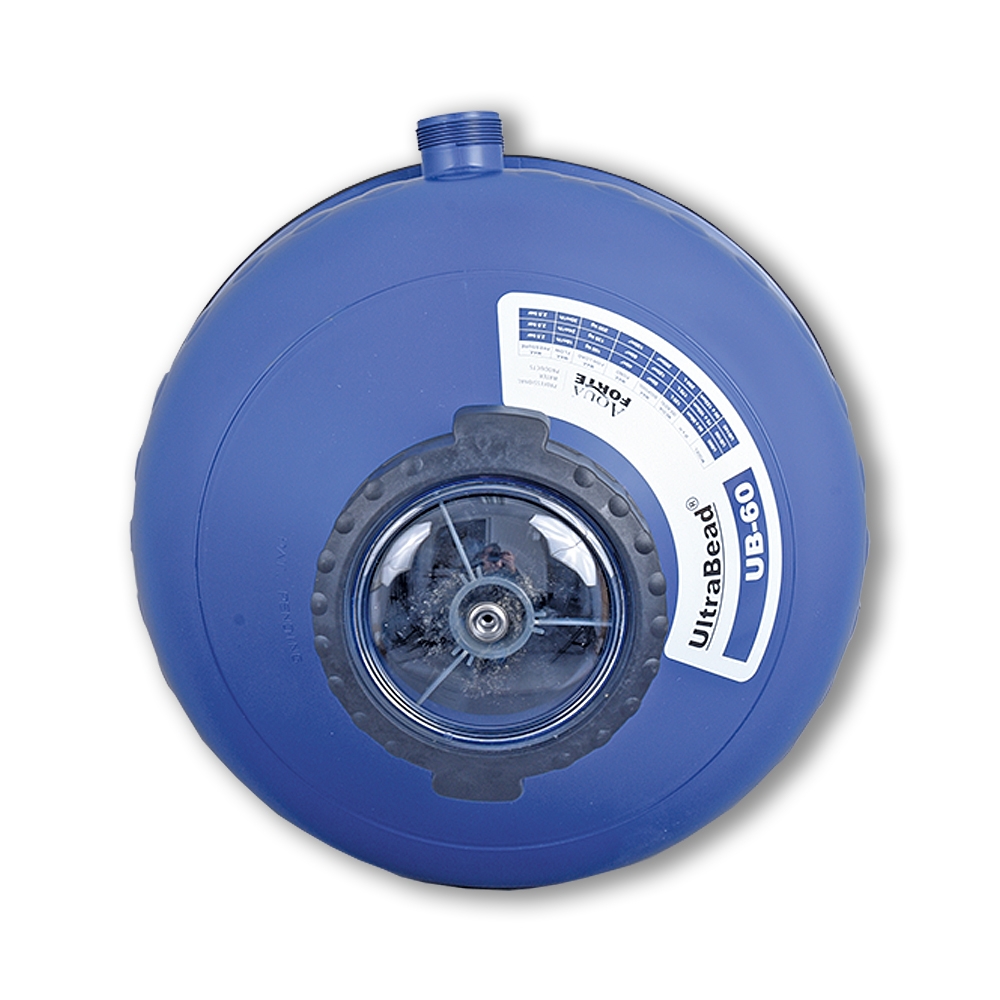

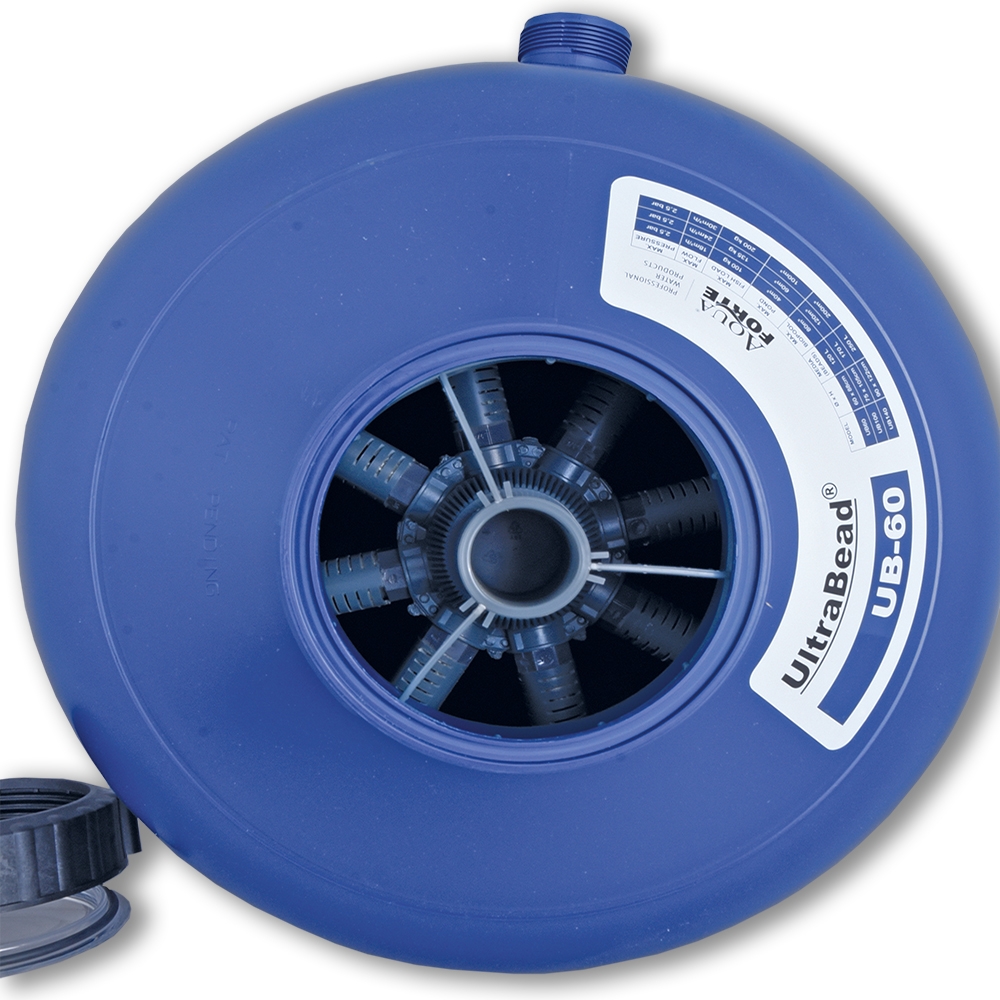

Ultra Bead Filter 60

Artikelnummer: 22201

Available immediately, delivery time: 1-3 days**

The new Ultra Bead Filter. After more than 17 successful years, Europe's most popular bead filter is now being followed by a new generation.

This filter can only be operated with a pre-filter and is sufficient for a pond size of 40m³ with a high fish stock.

To the product description

€1,599.00*

Prices include VAT plus shipping costs

Description
Instructions for use
Important information
User manual
Technical specifications
Installation
Feeding advice

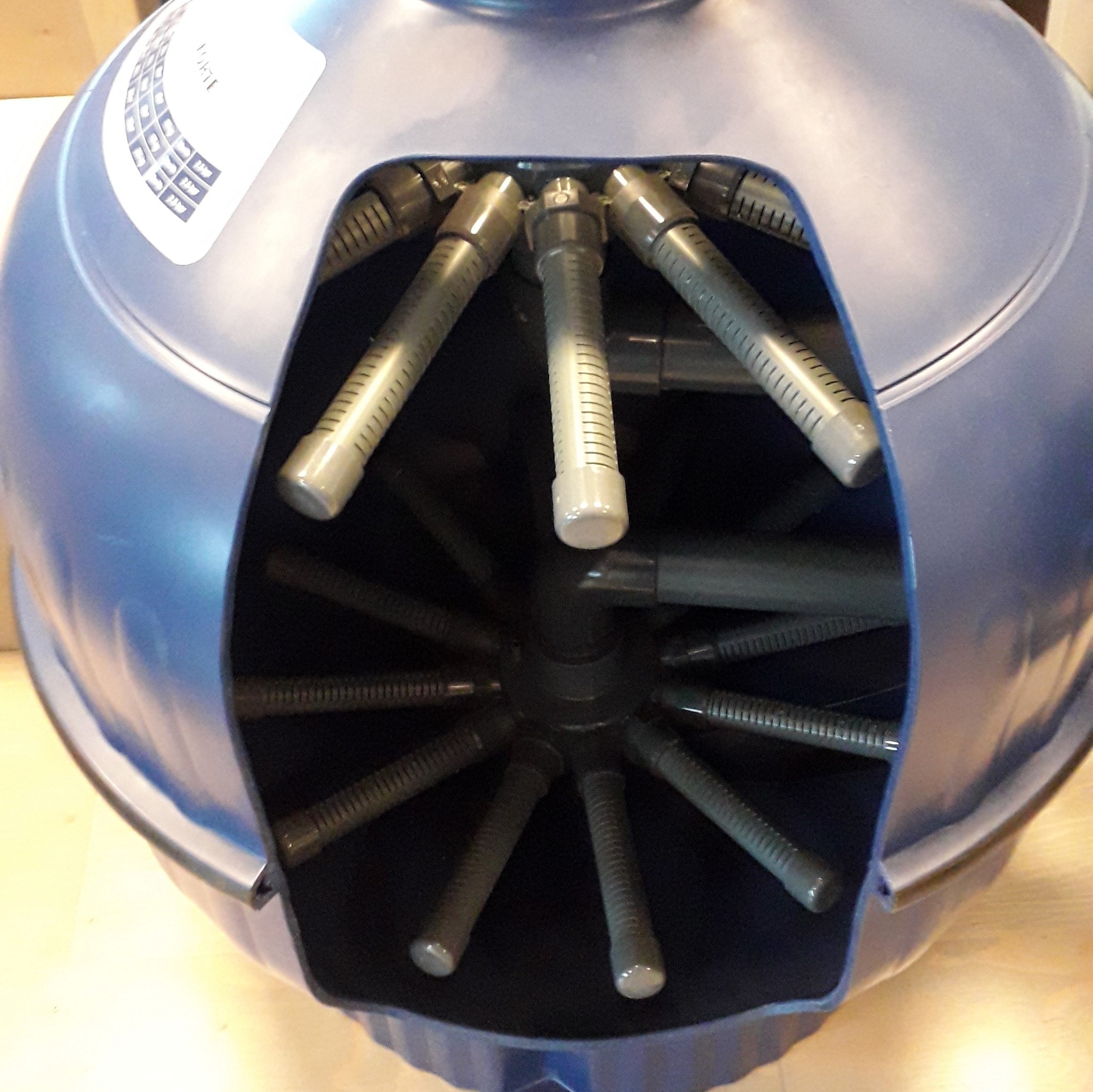

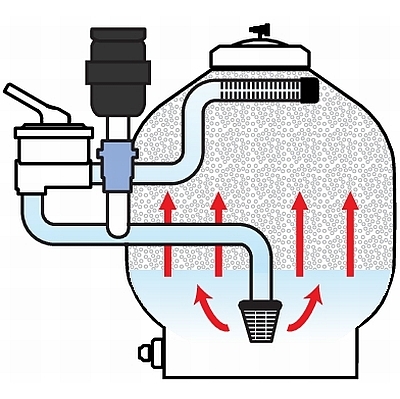

AquaForte presents the new Ultrabead filter! After more than 17 successful years, Europe's most popular bead filter is now being followed by a new generation. Bead filters are closed (pressure) filters filled with a few million plastic beads. The beads provide both mechanical and biological filtration. As the filter is used over time, the biofilm around the beads becomes thicker, trapping even very fine dirt particles (down to 10 microns!). When selecting a pump, you can calculate a back pressure of 3 m water column. Our own sales facility is also equipped with bead filters.

The Ultra Bead Filter 60 has a water throughput of 18,000 litres per hour and is suitable for a pond size of 40m².

The advantages of this filter are:

Thanks to its closed design, the filter can be installed both above and below pond level, which is made possible by the 6-way valve.
The filter is equipped with a blower as standard, which produces a huge amount of air to ensure that the beads are cleaned optimally.
With the 6-way valve, you can filter, backwash, overflow (past the filter) and pump out the pond.
You can install the filter in no time at all.
The beads have a huge surface area of 1600 m²/m³.

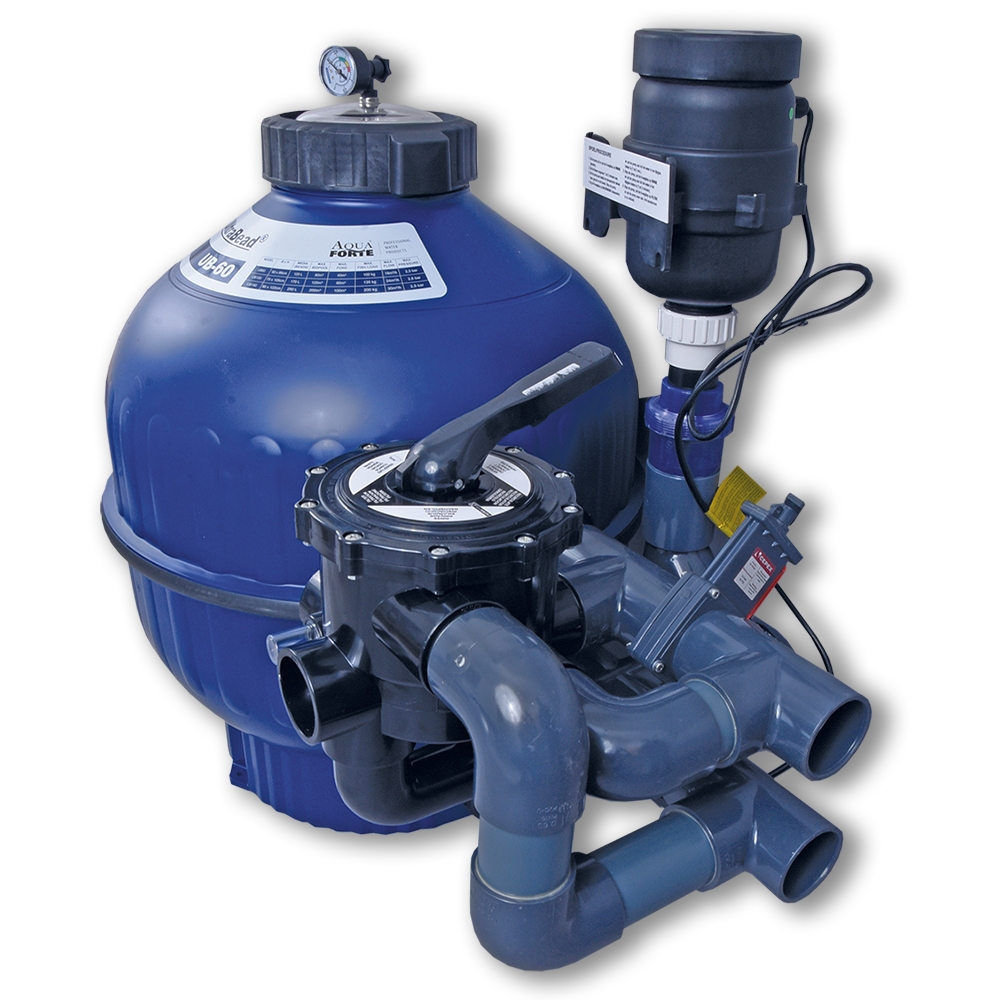

Delivery includes beads, blower and bypass
Material: indestructible thermoplastic, max. operating pressure 2.5 bar
The standard bypass included in the scope of delivery ensures lower pressure loss and optimum flow
You should protect the blower from moisture with the optional ball valve. This is the safest option.

The filter should be operated with a pressure pump.

The bypass allows the use of energy-saving pumps. The 6-way valve is bypassed during filtration so that the water flows directly into and out of the filter. During flushing, the gate valves are closed and the water flows through the 6-way valve. Thanks to its threaded couplings, the bypass system is very easy to install on all bead filters. The inlet and outlet on the UB 60 and UB 100 are designed for 63 mm. On the UB 140, it is 75 mm.

If you are unsure about the pump, please contact us.

This product has a net price. Please understand that we cannot offer you a loyalty bonus or fish voucher when purchasing this item.

Do you have questions about pond supplies and technology?

We are available for you!
Monday to Friday: 9 a.m. to 5 p.m.

+49 (0)6184 93610 info@koi-company.de

The UVC device must be installed after the filter.

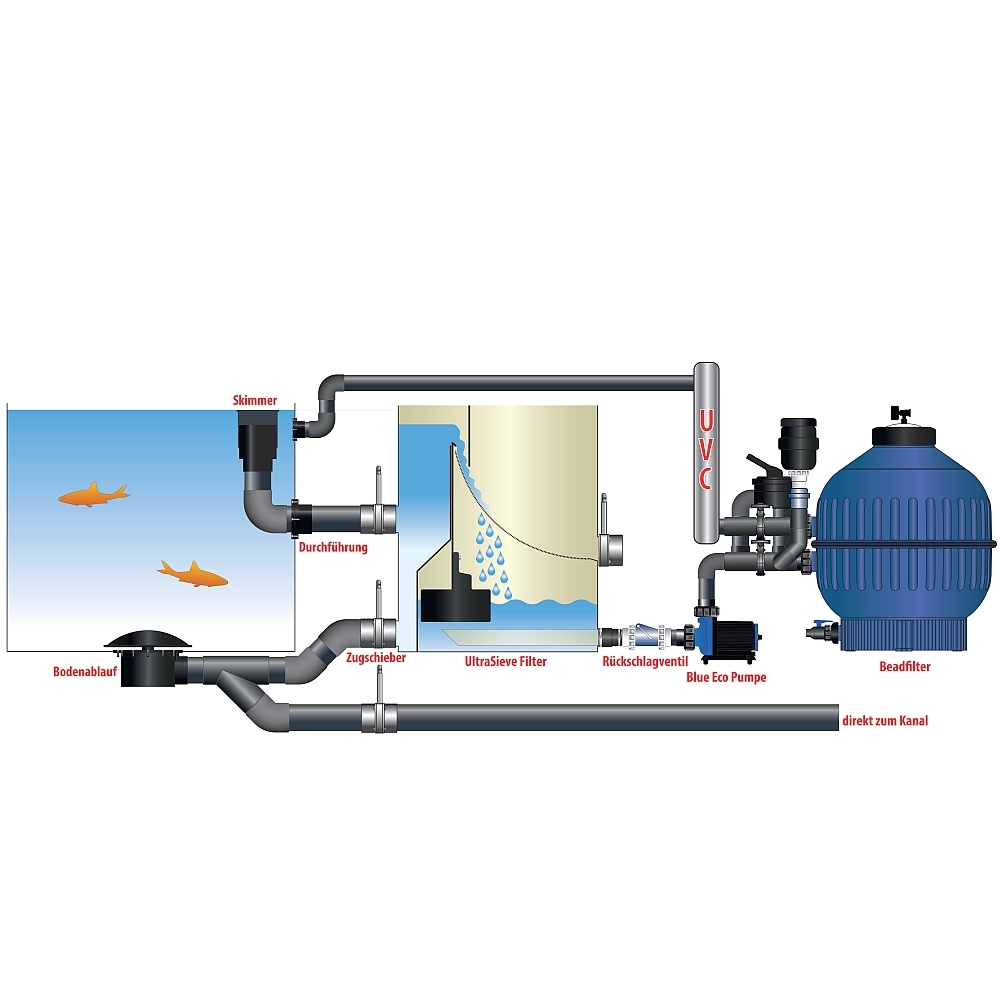

Gravity installation is only possible with a slotted screen in front of it.

Delivery is made on a pallet by a forwarding agent.
The pressure gauge should not be used as a flushing indicator, as is the case with sand filters (swimming pools), as in this case the filter would not be flushed for too long.
The Ø specification for the filters (mm) does not refer to the widest point of the filter. The protrusion adds another approx. 5 cm.

Operating instructions for Ultra Bead filter

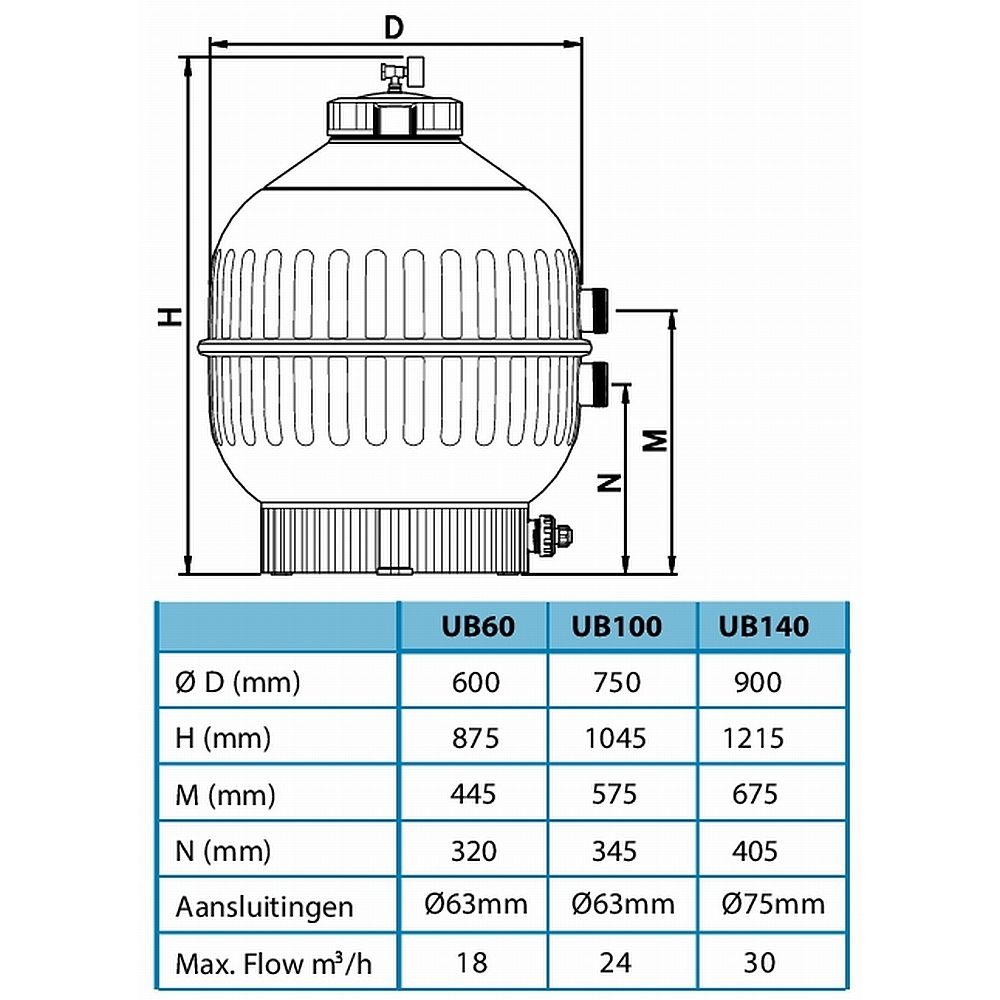

Dimension drawing Ultra Bead

Model	Size of filter (Ø x H) mm	Pond size with high fish stocking	Bead content litres / kg	Water flow rate pumped l/h	Max. fish stock kg at 1% feed/day	Connection
UB 60	600 x 875	40 m	approx. 120 l / 65 kg	18,000 l/h	100 kg	63 mm
UB 100	750 x 1045	60 m	approx. 170 l / 100 kg	24,000 l/h	135 kg	63 mm
UB 140	900 x 1215	100 m³	approx. 250 l / 175 kg	30,000 l/h	200 kg	75 mm
